Some years ago (in my fit days) I build a simple DSB WSPR rig for 10m based around a low cost 14.060MHz crystal bought from the GQRP club.  The idea was to pull and double this crystal and use it in a simple DSB TX and direct conversion RX.  Both TX and RX have been built separately, but I was ill before I got around to combining the 2 into a 10m WSPR transceiver. Both parts worked well.

See https://sites.google.com/site/g3xbmqrp3/hf/wispytx .

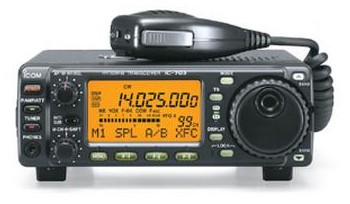

One of the best rigs I once owned was the 10W Icom IC703. This was a well equipped QRP radio with a decent receiver, DSP and auto ATU. I sold it to a local amateur who was a poor pensioner but I regret selling it now! No fan needed at 10W.  Just a first class rig.

See https://sites.google.com/site/g3xbmqrp3/hf/ic703 .

When I was young (that is now a very long time ago!) I coveted the Eddystone EC10 all transistor receiver. When I first had my call I had one on loan from a local SWL. I used it on 160m AM and CW.  A few years later a friend at work managed to get me one from his dad who worked for Eddystone. This was a pre-production unit. I used it as a tunable IF for several years.

Looking back it was rubbish!  On 10m the whole band was about 0.5 inches on the dial. On MW and bands up to about 6MHz it was OK. It had a low IF and germanium transistors (OC171s). It was mechanically a nice radio, but almost all modern receivers are a lot better.

Prices on the second hand market for EC10s are very high. Even though a far from great radio they are still sought after receivers.

See https://sites.google.com/site/g3xbmqrp3/hf/ec10 .

Some years ago, I was in need of a 70cms antenna for portable use and had to improvise by raiding my XYL’s wardrobe!  The result was a 2 el Moxon antenna made in about 30 minutes which worked some impressive QRP (2.5W) DX into France on 70cms. Gain is quite low but all you need is a wire coat hanger and a few bits for insulation and to attach the coax feed. Simplicity! It does not look pretty, but it works. The mast was made from a short length of PVC pipe.

See https://sites.google.com/site/g3xbmqrp3/antennas/70cm_moxon .

This was a rig I built and used a few years ago for 10m CW.  As you can see, the design is simple but it worked across the Atlantic many times. Pull the crystal too much and the RX-TX offset becomes too great. Ideal as a simple rig for 10m CW.

See https://sites.google.com/site/g3xbmqrp3/hf/10m_tenner .

Some years ago, QST had an article on a crystal set based on a zero bias MOSFET.  Although I have yet to try this sort of design I have no doubt they will work well.  Crystal sets derive all their power from the TX and in the past I have achieved some remarkable (well for me!) results.  Best was receiving Radio Australia (from Australia) as well as some amateur Gs on 80m and 160m at a considerable distance. In the USA some 75m AM amateur stations are regularly heard at great distances.

See http://makearadio.com/visitorsprojects/ralf-mosfet.php .

Several times in the past I have said that, if all other magazines had to be cancelled I’d keep GQRP Club’s SPRAT magazine. This small format magazine comes out quarterly and is excellent value for money. You don’t get the endless adverts by the few remaining national radio companies in the UK, just a few adverts from companies selling bits.  Every quarter there are articles showing things to build or ideas on which to base your own projects.

SPRAT really is first class and all produced by unpaid volunteers who love our hobby. As much as I enjoy browsing PW and RadCom, I look forward to getting SPRAT far more.
