The RSGB has negotiated with Ofcom to allow UK radio amateurs to use a special call to celebrate the wedding of H.R.H. Prince William and Catherine Middleton. The call may be used during a period of 11 days from the date of the wedding, 29 April 2011, until 9 May 2011. The call will use the letter “R” after the first letter of the call, replacing the regional designator for Scotland, Ireland, Wales etc. where used. So G4AAA would become GR4AAA, 2E0ABC would become 2R0ABC, GM3ZZZ would be GR3ZZZ and so on.

UK licensed amateurs wishing to use the special call must apply for a Notice of Variation (NoV) to their license. This NoV may only be applied for online using a simple online form and the NoV will be delivered by email. Who says that the RSGB is not progressive?

Personally I will be trying as much as possible to avoid all the ballyhoo over this wedding so I shan’t be applying, but I thought that the information may be of interest.

Last weekend was the first really warm sunny weather of the year. Sunday 10th was the day of the Northern Amateur Radio Societies Association rally held in Blackpool. As we did last year, Olga and I booked a night in a Blackpool hotel and had a weekend away. As we drove out of the Lake District on our way south, an endless procession of cars crawled north on their way in. We wondered where they would all manage to park once they got there.

Just as last year, I failed to find anything attractive about Blackpool itself. The rally itself was worth the trip, and I managed to find a few bits I needed or hoped would come in useful, though this year I didn’t manage to find a bargain to match the brand new Motorola GP300 radio body for £1 I got last year. The same trader this year had some new VHF transceiver bodies from a now defunct manufacturer I had never heard of, but the price was now £2. He claimed that programming software was available on the web, but battery packs were unobtainable. They would perhaps be useful for someone wanting a cheap transceiver for APRS or something like that, powered by an external supply wired to the battery contacts.

I took a few items for the bring and buy but sold none of them. When I collected them in the afternoon the chap who retrieved them for me said that it was very quiet this year, people were looking but not buying.

I met fellow blogger Paul, M0XPD, whose multimode QRSS beacon was on display on his radio club’s stand. Paul also thought attendance was down on previous years. I guess that economic circumstances and the cost of petrol made many people decide not to go to the rally this year.

Once again Cross Country Wireless run by Chris G4HYG had a great location facing the bar and the entrance. Chris was running an APRS digipeater using Lynn KJ4ERJ’s APRSISCE/32 software and displaying his latest products including the APRS TNCs, bandpass filters and end fed antennas. Chris told me that business is very good and he actually sells a lot of his products to the USA. It is great to see a British ham radio manufacturer having success in the US market.

Sunday was also a gloriously sunny day and we returned home the same way we had come via the scenic route. To avoid Ambleside which is usually a traffic snarl-up we came over Kirkstone Pass. It is years since I had driven that route and I have probably never done it on such a nice day. The scenery was spectacular, though unfortunately it would have been too hazardous to stop and take any pictures.

I noticed that when you save a radio coverage image from Radio Mobile, the program also saves a KML file. If you double-click on this it opens Google Earth superimposing the coverage map on the satellite view.

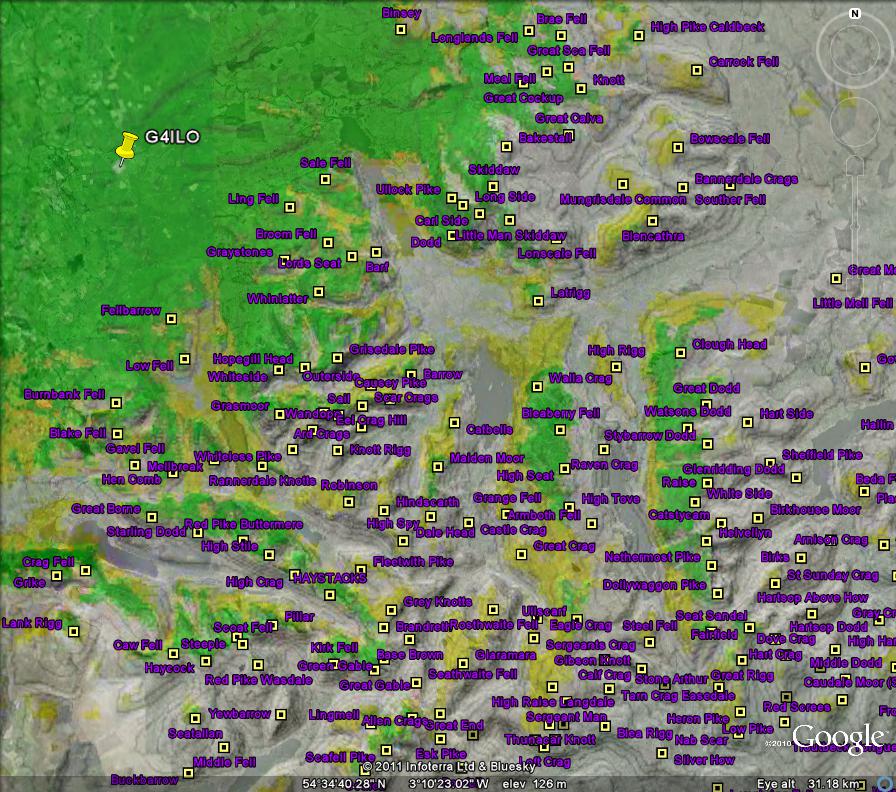

I made a new coverage map without the road map and then opened that in Google Earth. I then opened a Google Earth plugin showing all the Wainwright summits. I could then easily see the predicted radio reception from each of the summits. (Click the image to see it full sized.)

The predictions seem pretty accurate from the summits I have worked (or failed to work) so far.

A few years ago I read about a program called Radio Mobile which was supposed to be able to plot maps showing your VHF or UHF station coverage using actual terrain data. I downloaded it but couldn’t figure out how to get it to work so I gave up. A few days ago someone mentioned that it is possible to hook the program into an APRS server so I thought that I would try again. I was given a hint that for UK users the G3TVU Quick Start package was the easiest way to get Radio Mobile going.

The default setup is for a location in the Derbyshire Peak District so I followed the instructions on Changing Location to try to create maps centered on G4ILO. I got as far as producing an elevation map but was then baffled by the sentence: “Which can then be ‘Merged/Copy’ with a road map and ‘Kept in new picture’ to produce.”

James VE6SRV came to my assistance with an explanation in English: “On the menu select EDIT then in the drop down menu select MERGE PICTURES… F7. You’ll get a dialog box opened up. It will have a list of various sources on the left, detailed choices about the source in the middle and operation controls on the right.Try picking OSM, and then clicking DRAW. After the merge is complete, you’ll be asked how you want to keep the resulting image, or to discard it. The four options equate to SAVE, SAVE AS, LET ME LOOK AT IT FOR NOW, and TOSS IT. If you chose copy, the OSM tiles will overwrite the relief map. ADD, MULTIPLY, and BITWISE are 3 different methods of merging the shaded relief map with the OSM tiles. Depending upon the colours, and the type of output you want, you’ll need to play a bit with the choices to see how it looks for you. You can also play with contrast and brightness sliders to try and get the output just how you like it.” This was just what I needed, and after a bit of experimentation I soon had a road map of my area merged with the relief map showing the mountains.

The next step was to try to plot the coverage of my station on the map. I believe the default setup had a dummy base, mobile and hand-held station predefined but they were now outside my area and in any case I must have deleted them. Creating a “unit” for my own station was simple enough, but when I selected one of the tools to plot coverage the Draw button was disabled. Eventually I worked out that you have to have at least two stations (“units”) defined and they must both be members of the same network. The program will then plot the coverage for your station as received by a station of the same type as the other one.

I thought the coverage plots were rather optimistic judging by experience so I had to change some of the parameters and choose the “worst case” to get a plot that looked reasonable. This being VHF, it’s possible that the fact of my antenna being located in the attic could result in some degradation of the signal. I felt the default colouring of green for 3dB over noise or better and yellow for 3dB below noise to 3dB above didn’t give a realistic picture so I changed the colouring so that green depicts 10dB or more over noise and yellow shows between 0 and 10dB.

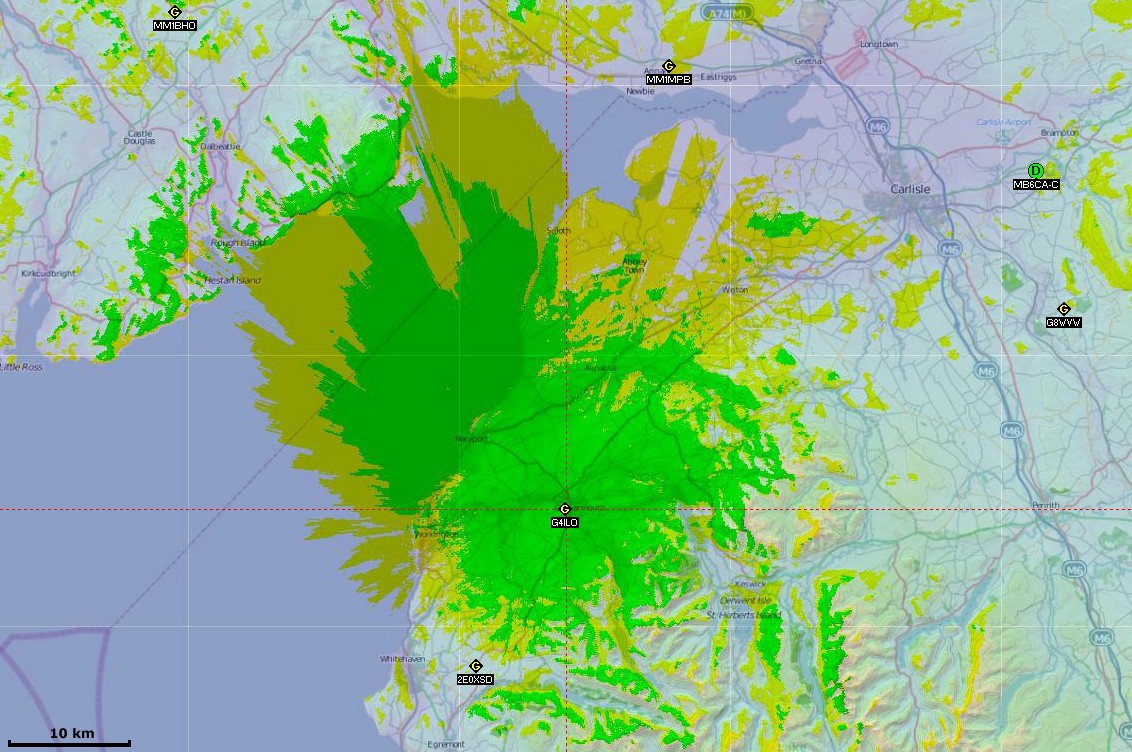

The first plot shows a wide area view:

Click to see the map full-sized. I did a second plot at a larger scale to show the local coverage in more detail:

The plot shows really clearly how my VHF range is limited by the surrounding hills.

Connecting Radio Mobile to an APRS server has limited use. The program doesn’t seem to handle objects very well so for example the GB3CA object put out by MM1MPB shows as MM1MPB and moves that station’s position. But it is a useful way to get other local stations into the system instead of manually entering their details.

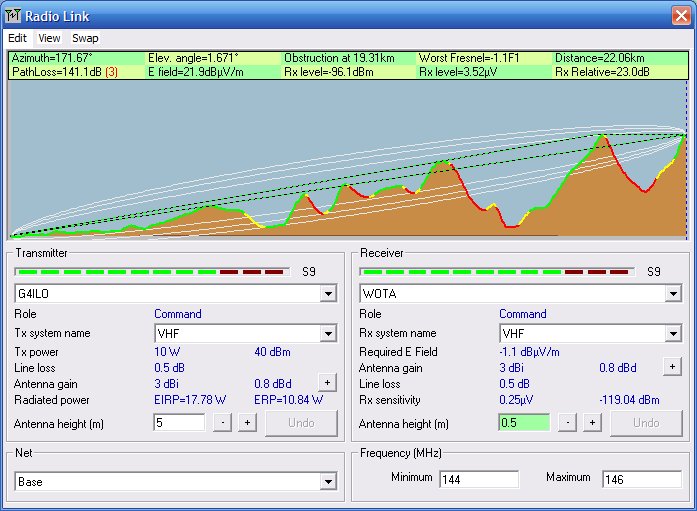

The objects sent out by WOTA to show the position of a Wainwrights On The Air activation are shown as WOTA not the name of the object. The Radio Link option can be used to plot the path between two stations and estimate the received signal strength, as in this example showing the path between me and Phil G4OBK/P on the summit of Seatallan.

The estimated S9 signal strength is somewhat more than I actually received from Phil and I was running 50W not 10W. As mentioned earlier my antenna gain is also downrated over reality to try to get a more realistic picture.

Radio Mobile is a clever piece of software and it was interesting to play with it. It was quite hard work to get going, but it was useful to see how the nearby hills affect my VHF coverage.
