Man is it ever hot here in Kansas!  Today it was 93 when I exited the car to setup the antenna.  Can’t wait for those cool fall days to arrive!

Once I turned the radio on I opened SOTA Goat on my iPhone to see where the SOTA activators were.  I noticed one of them was calling CQ on 12 meters.  I had never even listened on 12 meters, so I thought I would give it a go.

I couldn’t hear the SOTA activator, but I did here…

CO8LY – map from QRZ

CO8LY:  I heard Eduardo calling CQ with no takers and he was LOUD.  So I gave him a shot and he came back with a 599 report.  From the map on QRZ it looks like Eduardo was near the “infamous” Guantanamo Bay.

The bands were slightly strange today, a little up and down by there just not too many stations on.

I called CQ on 20 meters near the QRP watering hole…..

WB3GCK – from QRZ

WB3GCK/P: Craig was working portable from Duck, NC.  Duck, NC is on the eastern most part of NC – and looks to be a popular resort area.  He was VERY quiet – and judging from his picture on QRZ he was probably QRP.  He gave me a 559 and I gave him a 339.  We kept it short since he was so quiet.  Craig has a nice page with lots of operating stories and other projects.  You should really check it out here: http://www.qsl.net/wb3gck/  He is definitely a QRPer!

Called CQ some more and…

N3RSD: Frank came back with 559 reports both ways.  He was in Wilmington, DE.  We exchanged SKCC numbers and called it day.  I always feel bad exchanging SKCC numbers when I am using the keyer – should I?

One other interesting thing… I was tuning around at 18.100 and heard W4BVH/BCN Tampa FL – I will have to check this out and let him know I heard it!

Another fun and successful QRP lunch time portable outing!

Lately I have been doing a lot of hit and run contacts – either with DX stations or SOTA Activators.  I can copy pretty fast in these quick exchanges.  However, I have noticed that my speed has slipped a bit when in a normal QSO.

So today I decided that I would start having at least one QSO that was a bit more of a rag chew each time I operate.  Today I had two!

Here is the run down for today (15 meters seemed pretty dead, and so did 17 meters)…

KE7GKM – I heard Bob calling CQ on 20 meters and gave him a call.  He was in Boise, ID.  He was running a K2 at 5 watts into a dipole.  This was a nice 2xQRP QSO.

Then I took a look at SOTA Goat and noticed several activators….

W4EON – Eric was on Mill Mountain, VA – W4V/HB-023 – he had good ears since he gave me a 449 and I gave him a 559 on 20 meters.

WA7JTM – Peter was on Baker Butte, AZ – W7A/AE-035 – RST of 559 both ways.

N7CW – Bud was on West Spruce Mountain, AZ – W7A/AW-202 – it sounded like he was running a nice little pile up!  579 exchanges both ways.

Still had a bit of time, so I tuned down 20 meters and heard….

KF7YHB – Wyatt was calling CQ with a nice clean fist.  His QRZ page says he sometimes uses a “cootie key” – I wonder if he was today??  We had a nice long QSO which was really enjoyable – the speed was perfect and Wyatt had a great fist and signal!

On another note, I hope to make some more progress on the Mag Loop antenna this weekend – get it mounted and tuned up and hopefully make a QSO!  We are heading to the Kansas State Fair on Sunday to see one of my sons friends and our neice and nephew – so that should be a fun day!

After reading Larrys post this morning about 15 meters being open, I thought I would check that band out first today when I arrived at the park for some lunch time portable operation.  It has been a week since I have been on the air, so I was itching to get back to some CW.

Sure enough, right off the bat I had success…

DL4MO – I heard Loy finishing a QSO and when they wrapped it up I gave him a call.  He came right back to me with a 449 report – he was 599 here in Kansas.  Interesting thing is this was more than a quick report and “see ya” – I don’t think he could believe I was at 5 watts – he had me repeat my power after I sent it to him.  Loy lives in Germany – a new country for me.  His location is almost smack dab in the middle of the country.

SM5CAK – I heard Lars calling CQ and gave him a call – he was booming in here at 599, he gave me a 559.  Lars lives in Motola, Sweden – looking at Google Earth, it looks like a beautiful area.

I didn’t hear anyone else that was not in a QSO or very strong, so I decided to throw out a CQ on 15 meters…

F5RQQ – Jean-Marc is located in France.  We exchanged a quick report, he sent me 549 and I sent him 599.  Nice quick contact.

With 40 minutes left of my lunch hour, I decided to chase me some SOTA Activators…

K7SO – Sat was on W5N/PW-012 in New Mexico.  I worked him on 30 meters – he was booming in here at a 599 and I got a 549.

NM5S – Alan was on the same peak with K7SO but he was working 40 meters.  He gave me a 539 and I sent him 579.

KE5AKL – Mike was on W5N/SS-001 – Wheeler Peak, which is the highest peak in New Mexico at 13,167 ft.  I found this panaroma photo of the peak at Wikipedia – pretty cool shot.

Panorama of Wheeler Peak, NM – KE5AKL was here when I worked him!

With so many quick contacts, I still had about 8 minutes before I had to tear down, and I spun the dial on 20 meters looking for a CQ….

NK6X/4 – Bill was sending almost to fast for me, but I enjoyed it!  Sometimes it is good to be pushed.  He was in Dallas, GA, which appears to be part of metro Atlanta – I didn’t even know there was a Dallas, GA.  We had a nice QSO for the rest of my lunch hour, but I was having problems with the KX3 key.  Sometimes, it just will not send the dits and dahs when you push the arm.  Not sure what the deal is!

FUN FUN day today!  Thanks to all those that worked me!

So I got a little time over the weekend to make some progress on my magnetic loop antenna.  I constructed this antenna from 1″ copper pipe in a square shape with 90 degree elbow.  The loop is 30″ square.

At this time it will be rockbound on 20 meters, centered around 14.060 – so the bandwidth will be very limited.  I want to do this so that I can do some testing before I go all out and convert it into a multi-band loop, which will hopefully work on 20-10 meters (with maybe 30 if I am lucky).

Making the Coax Stub Capacitor
So what I did was take a piece for RG-213 coax and cut it about 30″ long.  Then on one end I removed about 2 1/2″ of the shield and pulled the braid away from the core.  I taped it all up really well with multiple wraps of electrical tape, leaving about 1/2″ of braid and 1/2″ of conductor (sticking out of core).

After sanding the copper to a nice shine, I took some stainless steel hose clamps and clamped the braid to one side of the loop and the center conductor to the other side.

This piece of coax becomes the capacitor which will be used to tune the loop to the desired frequency.  Right now it is longer than needed so it will resonate well below the 20 meter band.

The Feed Loop
I then took some RG-8 and made the feed loop.  For my loop size the feed loop is about 1/5th the circumference of the main loop – so about 24″.  I added a bit for the coax connector.  I decided on a shielded Faraday loop after reading that they are quieter on the mag loop email list.

To construct this loop I formed the circle and soldered the center conductor to the braid at the bottom of the circle.  Then at the top of the circle I removed about a 1/2″ of the braid only.  I taped up all connections and exposed braid, etc.

Initial Tuning
I quickly taped the Faraday loop to the main loop with some painters tape because I wanted to see how it looked just sitting on the bench.  Before I do the final tuning I will hang the loop on the wall of my garage – its final home.  I was just excited to see where it was resonant!

So I hooked up the antenna analyzer and started a slow sweep from 20 meters down looking for the SWR dip.  THERE IT WAS SWR 1.2 @ 11.131 MHZ – clear as day!

Next Steps
The next thing I am going to do is mount the loop to a piece of 1x wood and then mount that on the wall at its final location.  Loops are sensitive to their surroundings, so you always want to tune them at the location they will be when completed.

Then with the analyzer connected I will start cutting 1″ chunks off the coax until I get close to 14 MHZ – the final tuning will be done by sliding the braid up and down the core to get the frequency exactly where I want it.

Once it is operational I will spend some time testing with the Reverse Beacon Network and making contacts.  If it works well, ultimately I will construct a butterfly capacitor for tuning and build an Arduino stepper motor controller so that it can be remotely tuned from the shack.

I can’t wait to see how it works and if the noise floor is substantially lower than using my Portable QRP Vertical.

If you would like to construct something similar (although he shows a Gamma Match for the feeding) you should check out W2BRI‘s pages – great instructions with pictures to make everything easy.

The bands seemed very dead today at lunch.  I looked at SOTA Goat and saw that there were some guys spotted in New Mexico on some 10 point peaks.  I listened first for WS0TA (club call) and could not immediately here him – he was there, but not strong enough to copy.

So I put out a CQ about 14.059 and checked for reports on the Reverse Beacon Network.  I was spotted on both coasts by about 11 stations with many reporting 15-20+ DB – so I knew I was getting out.  Do you ever wonder if the bands are dead, or just nobody is calling CQ??

Contacts for today:

WS0TA – I was finally able to pull him out of the mud with 339 reports both ways on 20 meters.  This is a club call, so I am not sure who the OP was today.  He was on W5N/SE-001.  (Updated: Fred, KT5X was the Op today, and also the trustee, for WS0TA.  Looking at his QRZ page he is also into trail running, and running on mountains!  Very cool!)

K7SO – I saw him spotted on 10.110 and was able to work him easily thru the little pileup.  He was 599 and he gave me a 579.  He was on W5N/SE-003.

K1JD – He was 559 and he gave me 579, he was also on W5N/SE-003.  Worked him on 10.110 also.

NM5S – also on W5N/SE-003 but on 40 meters about 7.031 – very weak but I called him when he peaked a bit.  He gave me 449 and he was 339.

Fun to work 3 guys on the same peak – I bet they were having fun!  Unfortunately for me, the chaser, I only got 10 points for the 3 contacts since you only get points for a peak once per day.

Right now I am sitting at 88 points.

N7BBH – Right as I was ready to pull the plug and head back to the office I heard Steve calling CQ and he was nice and strong.  We have worked each other twice before.  I had to keep it short since I was almost late, but he got stronger during his second exchange, and he reported I did as well.

Fun day once again!

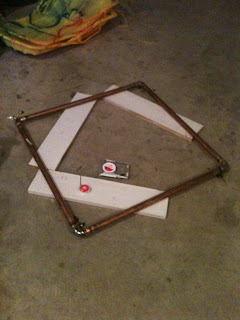

30″ Magnetic Loop Under Construction

As the list of major projects at our new home is starting to get shorter, I have been pondering an antenna installation that is more permanent than my Portable QRP Antenna that I strap to the deck railing when I want to operate.

The portable vertical I use, which is nice and quiet at the park, is VERY noisy at the home QTH which is full of all sorts of man made electrical noise.

First thought was to put a 66′ doublet in the attic and feed it with ladder line.  I have no doubt this would work, but I have to invest in ladder line to make it happen.

I have a 30″ square magnetic loop that I have built from 1″ copper pipe before we found out we were moving.  It is all soldered up, just sitting in my garage waiting for a tuning capacitor and feed loop to be installed.  I am leaning towards this being my first antenna install here at the QTH.

Why a magnetic loop?

You can read all about the good and bad of loops online, but one of the biggest drivers is that they are supposed to be very quiet.  Many hams that report S5+ noise on their dipoles are reporting S1-S2 noise on the loop.

The other reason is that it is almost done – probably a couple hours of work max and I could have it on the air.  Additionally I can hang this in my garage, or put it in the attic, so that I can keep in good graces with the ever watchful HOA observers!

So that is what I am going to do.  At first the tuning capacitor will be done with a coax stub tuned to a fixed frequency.  I will do this centered around 14.060.  This will give me a narrow little spot to play.

Then I am going to build a home brew butterfly capacitor – which I will document here.

As I have mentioned before, in May we moved our family from the Kansas City area to Wichita, KS.  While everything is unpacked and pretty well settled in, there is still some organizing that needs to be done.
