Regular readers of my blog may have detected a loss of interest in HF band operating over the last few months. I have got tired of listening to signals through the harsh noise that it is never possible completely to eliminate, I got bored with the sameness of contacts using PSK31 and I got angry at having to battle with the renegade ROS mode if I wanted to use Olivia or other digital modes. My hopes were set on Sporadic E on the VHF bands but this year’s season has been disappointing with no major openings on 144MHz extending this far north as far as I am aware.

Most of my radio activity in recent weeks has been focussed on APRS, first on establishing a VHF gateway and in the last few days getting going on HF. As I haven’t felt much like actually sitting at the radio making contacts this has proved to be a good way to make some use of my HF equipment, a mode of operation that doesn’t constantly remind me of the limitations of using attic antennas from a poor and noisy location.

I recently set up my private Echolink node again. I now have a Kenwood TM-D710 transceiver, a dual band 2m/70cm rig with dual receivers, a built-in APRS TNC and support for Echolink. However I’m still using the FT-817 on low power into a dummy load for my Echolink node for now. Before I could run a public Echolink node I would need to buy a proper dual band antenna instead of the 2m Slim Jim I’m currently using and apply for a permit from Ofcom. I’d then lose the use of the Kenwood for local 2m contacts and WOTA chasing, while the number of stations that could actually access the node due to my poor location could be counted on the fingers of one hand. So despite its built-in support it doesn’t seem worth using the Kenwood for Echolink.

The node was on yesterday afternoon and I was sitting downstairs in the conservatory with the TH-F7E having a contact with John G4LRS from near Sheffield. After I finished with John I was called by VK6FSBB (if I remember it correctly) a Foundation licensee from Australia called Bill. Bill called because he had heard that my home location was Cockermouth. He was originally from the Workington area (Maryport in fact, though he had lived in Flimby, Seaton and various other places in West Cumbria) but had moved to Australia 45 years ago. He had held a ham radio license for only eight months and I was the first contact he had ever made into this area.

Bill had played rugby for various local amateur teams and mentioned various employers he had worked for, though as an incomer to the area I didn’t know any of them. When I tried to explain where exactly I lived, I realized that the town must have changed beyond recognition from the days when Bill knew it. Things like the A66 bypass simply weren’t there.

I could have talked for longer, but dinner was nearly ready and Bill’s hand-held was only just making it into whatever repeater he was using to access the Echolink network in Australia so sometimes he dropped out after a lot of loud hissing like an old analogue mobile phone call. It may not have been a direct contact on HF and it wouldn’t count for any awards, but to be Bill’s first contact back to the place of his birth after 45 years made this VK contact a special one by any standards, one to remember long after I’ve forgotten many humdrum HF QSOs.

Steve, GW7AAV, spotted a news item on the NZART web page which states that the authorities in New Zealand have become concerned about IRLP, D-Star, Echolink, APRS and similar modes as they do not appear to fit within the New Zealand license conditions. Their concerns include the use of unattended transmitters and unlicensed digipeaters for APRS and amateurs based overseas operating a NZ amateur station via the internet.

It’s easy to forget that other countries don’t have such liberal licensing conditions as we do in the UK, although I would point out that operating an Echolink, D-Star, IRLP or packet radio (including APRS) node is not within the standard license conditions here either – you are supposed to apply for special permission. I know there are many who feel that is a good thing, and even that internet linking is not amateur radio and should not be allowed anywhere in the world, at all, but my opinion is that prohibiting it devalues amateur radio.

This policy is probably one of the main reasons why the APRS RF network is broken for messaging as many people (myself included) who are unwilling or unable to comply with the requirements for obtaining permission avoid the problem by operating receive-only gateways. Consequently we have the situation where smartphone-based APRS using mobile internet connections are more useful than APRS over radio.

I certainly believe that the point of our hobby is to use radio wherever possible, but where the internet makes possible something that could not practically be achieved using RF alone I think that we should be permitted to use it.

I did a quick lash-up of the UHF FM transmitter module I received a few days ago which I was planning to use in a low-power Echolink node, mainly just to see if it worked. It did, but I discovered a small snag. The audio output isn’t squelched.

The Echolink software requires either normal squelched FM audio or a carrier operated squelch signal on one of the serial port control lines. As neither of those is provided I guess I am going to need to generate a squelch signal derived from noise. But as I am not knowledgeable enough about electronics to design my own circuit I am going to have to find one first. This appears easier said than done, though there seem to be a surprising number of patents on the subject.

It isn’t an urgent problem as I’m not in any hurry to build this project. I’ll probably have more enthusiasm for it once the gloomy autumn weather starts.

Yesterday I was surprised to receive a package, by air mail, from Greece. It was the micro transceiver module I ordered at the beginning of April from Elcom Research. I was informed that it had been sent by registered air mail, but when it didn’t turn up and further emails went unanswered I opened a dispute with PayPal which was judged in my favour and the money was returned to my account on May 21st.

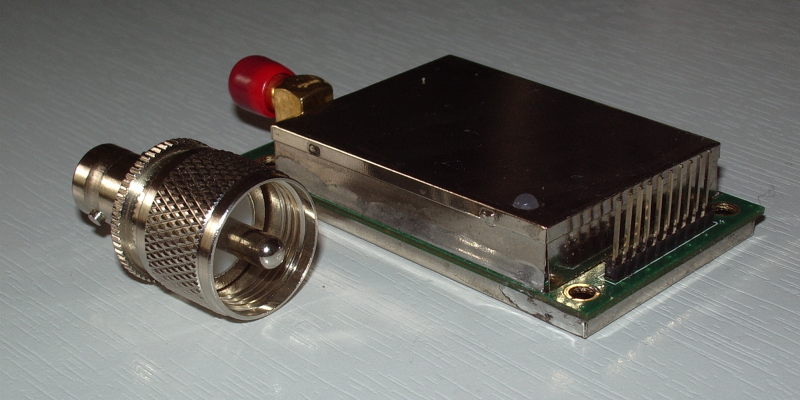

What I received was just what you see in the picture (less the PL259-BNC adapter which was included in the picture for scale). No documentation, no indication as to what the connections to the 10-pin connector are, nothing. It is completely unusable as sent. What’s more, the Elcom Research website I originally ordered it from now seems to be defunct. The only identification is the part number FC201SA on the circuit board. I typed that into Google and found that the module is an FC-201/SA Audio/Data RF Module manufactured by Friendcom in China. Google also turned up a PDF user manual on the Friendcom site, so I was able to download and print off that.

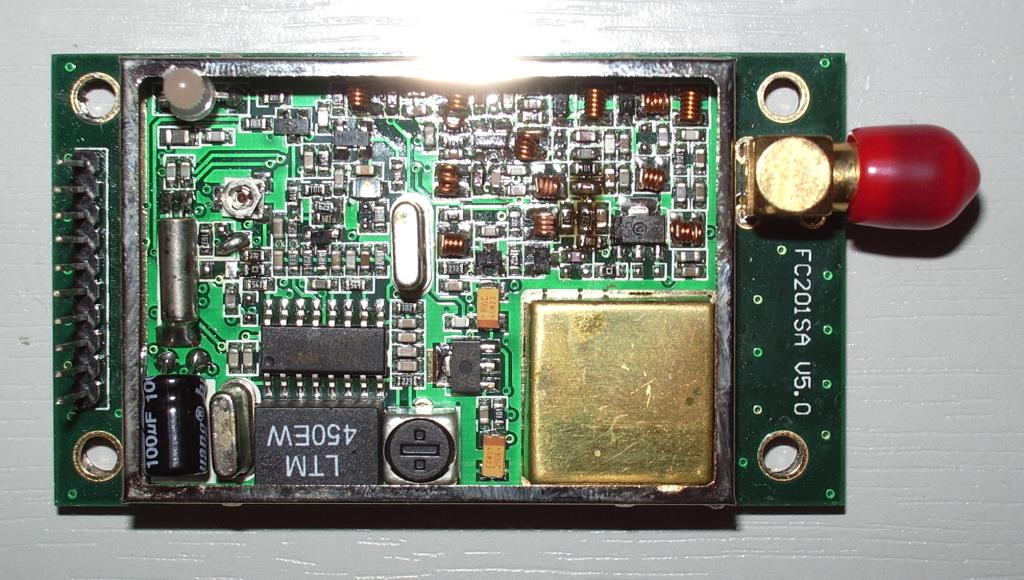

From the manual it appears that Friendcom would normally supply a cable for the 10-pin connector. I didn’t receive one. Without it I will have to solder directly to the pins, because although it looks like a standard 0.1in PCB header connector it isn’t. The pins have a spacing of about 1.8mm. I haven’t been able to find a mating connector, though I admit I haven’t looked at the professional parts suppliers as with minimum order quantities and so on it isn’t economic to order a single connector from them anyway.

My intention with this module had been to make a micro-power Echolink hotspot. As I no longer expected to receive it I had moved on from that idea, but now it’s here I guess I’ll have to pay for it. I don’t plan on doing anything with it until the autumn at least, as for me summer is not the time for constructional work.

My gardener XYL Olga has been waiting for rain as eagerly as I have been hoping for a Sporadic-E opening on 2m and today she got what she hoped for. As I was shack-bound I decided to hook the IC-910H up to the computer.

A few days ago I noticed to my amazement that the accessory connector on the IC-910H is exactly the same as the one on the FT-817. I could have simply used the interface I used with the ‘817, except that I had shortened the serial cable to make it the same length as the audio cables when used with a USB to serial adapter. My new PC has two real serial ports one of which was earmarked for exactly this purpose so I had to make up a new, longer cable before I could get started.

On the audio side I needed to use a USB audio “dongle” as the on-board sound card is used by the K3. I already use a Daffodil USB sound adapter for the computer audio. The dongle I used for the IC-910H is an even cheaper, more basic one than the Daffodil and I had purchased it to make an interface for my Echolink node. It appears to be satisfactory for that. Hopefully it will also be good enough for 1200baud APRS packet using the AGWPE sound card software as well. I doubt that it would be good enough for any kind of weak signal work like WSPR, as I observed a few weeks ago that the Daffodil adapter could not reproduce my recordings of weak CW bounced off the Moon from Arecibo. But I don’t plan on doing EME or even WSPR or PSK31 on VHF anyway.

I set up APRSIS32 with the AGWPE software so I will be able to run an APRS gateway again when not needing the VHF radio for any other purpose. This may be useful as there seems to be an increase in APRS activity in the area. As well as Colin 2E0XSD getting set up on RF I have tracked G1TGY driving around the area. I’m not sure if I have the audio levels correct as I haven’t heard any APRS to see if I can decode it and APRSIS32 doesn’t support transmit through AGWPE yet.

I also installed the Echolink software on the shack computer and set up my Echolink node / hotspot. This is a personal node operated under the remote control provisions of my license so it is a bit wasteful that I have to generate 5W or RF – the minimum the IC-910H will go down to – and then dissipate it all in a dummy load to stop it being heard outside my property boundary. However it is nice to have the node available again as my back is playing up a bit today and it enables me to do some ham radio from a reclining chair downstairs or even lying on the bed if I need to.

Whilst setting up Echolink I noticed a conference called *QRP* which I hadn’t seen before. I see that several QRP bloggers have been trying Echolink recently so perhaps we could use this conference for an occasional get-together? I’ll connect to *QRP* more often over the next few days to see what if anything goes on there.

A few weeks ago I set up an experimental low power EchoLink node for use as a personal EchoLink “hot spot” using my FT-817 and a dummy load. I planned to make a a dedicated transceiver / computer interface for this. I thought I found the ideal basis for the project in this UHF Micro Transceiver Module from Elcom Research, a Greek company that makes packet radio and APRS products. The transceiver runs on 5V and can be powered by a computer USB port.

Perhaps I should have been warned off by the fact that an enquiry made through the web form on the Elcom site went unanswered, but I went ahead and ordered the module on 9th April, paying online using PayPal. After a couple of weeks nothing had been received, so I sent an email enquiry and received a reply that it had been sent by air mail and should be with me by the end of the week or the beginning of the next one. This was during the flying hiatus caused by the Icelandic volcano, so I gave it a bit longer. However it is now a week after the week that the module should have been received at the beginning of, and a further email received no answer at all. It looks unlikely that I will receive the module at all, so I guess my only option is to initiate the PayPal disputes procedure.

In a comment to an old posting about D-Star in G4VXE’s blog, Lee N2LEE accuses me of being closed to new ideas. Does it matter that the AMBE codec is patented if it is the best one for the job, he asks? And how can you compare Echolink/IRLP to D-Star when D-Star is an digital end to end system with routing, linking and networking built in to the system so you can just enter someone’s callsign and the network will find them automatically?

To me, ham radio is not and never has been about reliable point to point communication. Communication is just the end-product of a process of experimentation and construction, or a pastime (think contests, DXing) where the unreliability and unpredictability of it is what makes it a challenge.

D-Star’s use of a proprietary codec closes that aspect of the system to experimentation. It doesn’t even permit interested amateurs to look at the code and see how it works. This is contrary to the spirit of amateur radio and the openness that has facilitated most developments to date by letting one idea lead to another. But to be honest I’m not all that bothered about the issue because codec technology, whether proprietary or not, is a closed book to most. I am more concerned about the possibility that digital voice modes might one day make analogue modes obsolete so that building a simple phone transmitter using SSB, FM or AM becomes a pointless activity. Ham radio does not have to slavishly adopt new technology, especially if that technology forces more of us to become appliance operators by making simple rigs that anyone can build obsolete.

As for digital end to end routing, why do we need it? We already have a system that can do that. It is called the mobile phone network. I didn’t get into ham radio in order to be able to do something ordinary people can already do. I want to be able to do things that they can’t. The unpredictability of propagation and the uncertainty of who you might work on a given band at any time are what makes a ham radio contact more interesting and more of an accomplishment than making a phone call. D-Star may be very clever technology but what it delivers is not what ham radio is about.

If the time ever comes when I think to myself “why am I struggling to make this contact on 20m SSB or whatever when I could simply type the guy’s call into my D-Star radio and have a comfortable chat” then that is the day I will give up the hobby for good. And I make no excuses for resisting the adoption of technologies that will bring that day closer.
