How simple?

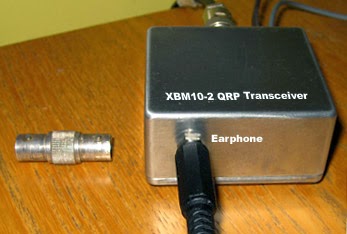

Some years ago I attempted to see how few components were needed to communicate on 10m. The Lesser Chirpy was the best I could manage. This was a derivative of The Chirpy, which worked, but had far too much chirp!

Looking at the circuit I see I could save 1 component by replacing C1 and C2 by preset C’s and shorting out C3. This would allow the TX-RX offset to be set. If one was made a variable rather than a preset the RX-TX offset could be adjustable.

Since being ill I have not tried the rig. A limitation was the limited RX sensitivity, meaning only stronger stations would be workable.  However, the rig does work and is very simple. Another possibility is to switch to an external RX but allow the internal RX to be used when signals are strong enough. The TX power is certainly enough to span the Atlantic and work all over Europe.

The secret to low chirp on 10m is the use of FSK rather than CW. Essentially the TX changes frequency rather than go from RX to TX every time. This means full break-in is not possible in such a simple circuit. Can you do better? If so, I’d love to see the schematic please. I make no great claims for my circuit, which is an amalgam of ideas. Pure fun!

See https://sites.google.com/site/g3xbmqrp3/hf/chirpy .

Roger Lapthorn, G3XBM, is a regular contributor to AmateurRadio.com and writes from Cambridge, England.
