No chance to do any radio this weekend as was away with the XYL in North Yorkshire. Packed the Baofeng but never got chance to turn it on..


I did manage to get along to Maplins at the end of last week and grabbed some expensive N-Type connectors (as well as some other connectors, a cheap dummy load and an antenna switch!) So this evening I am hoping to sort out my Moonraker 7-element 70cm ZL-Special for the 432MHz UKAC contest tomorrow night.



I have been reading up on the ZL since I have always been a bit confused by the antenna.

The assembly instructions for the Moonraker one were very poor and the joining of the two phased elements was achieved using simple straight wire, rather than the twisted transmission line I was expecting. It has worked reasonably well as a RX antenna but I haven't used it for TX yet.

I have found a small section of ladder line from an old FM radio antenna, so will be using that now that I have more of an understanding of how it works, the front element and the larger rear element are supposed to be approx 1/8 wavelength apart (I haven't measured it yet) the two are joined using a twisted section of transmission line 1/8 wavelength in length.

There is also a trimming capacitor to help with the matching, so with this information I hope to get things tuned up nicely, the only draw back is only have RG-58 coax at the moment which isn't ideal for UHF, but it is only a 10m length and will be using proper N-Type connectors.

Spent a fun evening in the shack taking part in the UKAC 144MHz contest. It was nice and warm with the heating on and I a few bottles of beers on standby!


I was a bit more organised than the 50MHz contest last week. I got the computer running the Minos logging program. Just before 8pm I raised the antenna and double checked the VSWR and had a quick listen around on the band before the start and heard a few operators setting up. All looked good and then before I knew it we were off!

Due to my inexperience I operated in 'search and pounce' mode rather than calling CQ. I kept going outside and turning the antenna in a new direction and then spent several minutes searching up and down listening out for CQ calls.

I soon made a few contacts and fumbled along but my confidence increased as I got the hang of the exchange required.

I was jotting down the information and almost made the mistake of relying on the computer logging till I made an error and when attempting to correct it end up in a total mess due to my unfamilarity with the software. Thankfully I was able to sort out the log and carried on, but lost some time doing so.

Thankfully the rain held off but the wind was blowing quite strongly and the antenna was waving about a little so didn't have it at full height, not that full height was particularly high anyway and more often than not I suspect my antenna was pointing in the wrong direction!

At the end of the night I only managed 10 contacts, but was pleased none the less, scoring 930 points.

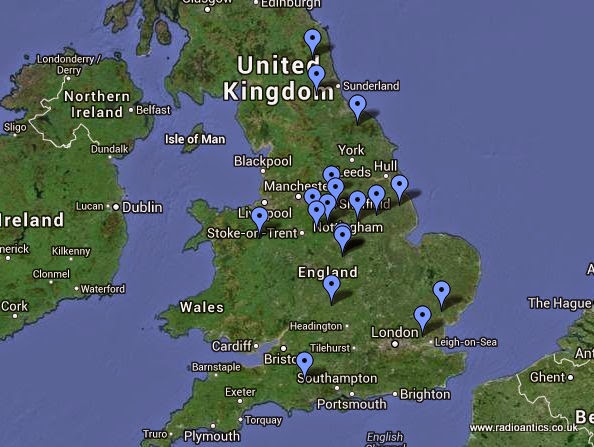

 I have made a map of my QSOs and as expected they are limited by my surroundings


View UKAC 144MHz - 4 Feb 2014 in a larger map
Many years ago I experimented with a PMR eQSO gateway (detailed here) and when doing that I created a couple of terrain maps were created using GEOG. Geog is a suite of programs written by Andy Talbot (G4JNT), some of which make reference to a database of UK terrain heights, to provide useful information for radio amateurs (and others interested in point-point working) The software is still available on Andy's new site

Interestingly the contacts appear to follow the direction of the Trent valley, while the surrounding hills have a masking effect. The contacts to the west in the Peak District are probably due to their height!

Roll on next week for the 432Mhz contest.. another antenna I have to sort out properly.

The antenna this morning

Back in 2011 my brother won a Innovantennas 4-element LFA at the National Hamfest, he couldn't make us of it back then so I adopted it. I have used it for reception but until now not for transmission.

I should say my brother has took his foundation exam and has the callsign M6GTD, so am expecting him to ask for his antenna back at some stage! ;-)

This evening is this months 144MHz UKAC contest and I spent yesterday evening getting the antenna set up properly so I could take part. Unfortunately the antenna was damaged just before Christmas and I have now replaced the boom insulators and straightened the bent director element.

It took a while to get the antenna VSWR down to a satisfactory level, not due to any fault but simply I had the adjustable sections of the active element loop too far out. They are now almost fully in, but at 144MHz the VSWR is a little over 1:1 and across the entire 144-146MHz the maximum is around 1.3:1 so I am hoping it preforms reasonably well, even with 10m of RG-58.

As suggested I have a 'ugly' rf-choke inline, which you can see on the photo. The antenna is clamped just under the vertical collinear, and hopefully this won't affect its performance.

I can put the pole up to around 5m, but the top section isn't that substantial and has a reasonable loading with the yagi and the collinear on it, but the pole it is securely guyed so for temporary use should be okay. Well that is what I thought till I saw the weather forecast


The wind speed and gusts look a little worrying, peaking at around 40mph between 21:00 - 00:00!

The only saving grace is that I will be manually rotating the antenna I will be out checking on it regularly during the contest!

Best of luck everyone taking part...

I posted a few weeks ago about issues I and others were having decoding the telemetry from FUNCube-1. Initially this seemed to be related to a dashboard software update, but even downgrading to an earlier version has been giving variable results.

What seems to have been the issue is a reduced quality of received signal. Operators with higher gain, optimised antennas appear not to have seen problems. Why there has been such a fall off isn't clear, the power output of FUNCube-1 hasn't altered and appears not to be tumbling.

The FUNCube team have now released a new version of the Dashboard Software. Version 820 can be downloaded from http://funcube.org.uk/working-documents/funcube-telemetry-dashboard/ The major change in Version v820 centres on improved decoding routines which give better results, especially with weak signals at low elevations and simpler antennas.

I have been running this now for several days and can confirm it is much better, as promised low elevation passes now get successful decodes and night time passes when the telemetry is on low power get successful decodes something I wasn't getting before.

Now I have the shack sorted I have set up a dedicated receiver using the original FUNCube Dongle using the X-30 white stick collinear and this has been pulling in decodes nicely.

This morning I had surpassed the 2000 telemetry decodes milestone, as can be seen on the rankings page.

Another nice result over the weekend was seeing my callsign in one of the FITTER messages

Rx'd my callsign in the 'Thank You' Fitter messages from FUNCube-1 over the weekend, nice touch! pic.twitter.com/MvJt8p6tVU
— Andrew Garratt M6GTG (@nerdsville) February 3, 2014

It is a nice touch that the FUNCube-1 have started acknowledging the receivers, hopefully with the improved software there will be more participants.

The next stage for me? Well must sort out trying to have a QSO via FUNCube-1 and the other satellites..

Last night I attempted my first contest, the RSGB 50MHz UKAC

I am a complete novice at using HF, in fact I am a complete novice at transmitting anything!

My Chinese Baofeng handhelds have pretty much collected dust since getting my licence. However with the purchase of the FT-857D I must, despite my trepidation, step up to the microphone.

I had hit a snag when testing out the new radio, my antenna was showing high VSWR on 6m, even with the ATU I was struggling to get it to 2:1, therefore I decided to construct a simple dipole and sling it up with an ugly choke 'balun' I had constructed.

Due to some unexpected delays I was running out of time but eventually did manage to get something up, it was only around 2 meters off the ground and the VSWR still wasn't ideal, but I was ready.

At the appointed time, well nearly an hour late I started turning the dial and was met with a load of static, wasn't hearing anything! This continued for a quite a time then suddenly I started hearing "CQ Contest  CQ Contest" I listened in for a while to try to get the gist of the exchanges, wandering up and down the band.

Then I decided to have a go at a QSO, giving my callsign out, I waited nothing! "QRZ CQ Contest CQ Contest" another go.. still nothing.. and so on..

Changed frequency to another stations, tried again and I was heard, but they couldn't make out my call sign despite several attempts.. another change of frequency and the same results.

Now I know I had only got it set a 5W, the lowest I can till I get some confidence in my set up and am not going to damage anything! But I was a little disappointed, but I persevered until suddenly I was in the middle of my first contest QSO and my brain turned to jelly..

Thanks to M0MDY and his patience and prompting I successfully completed the QSO, details suitably written down. I carried on with no luck and called it a night just after 10pm, and went back in the house and manually entered the details of my solitary contact on the RSGB Contest website www.rsgbcc.org

Checking this morning and there I am at the bottom of the list, but not the very bottom, with a whopping 48 points.

http://www.rsgbcc.org/cgi-bin/claim.pl?Contest=50MHz%20UKAC&year=2014

Roll on next week, it is the 144MHz UKAC and I have a proper 2m YAGI... just got to work out how to mount it up on the poll and how to rotate it..

73s

Excellent service from Waters and Stanton, Radiozing and M0CVO Antennas meant my FT-857D, PSU and HF antenna arrived the day after I ordered them. They have however sat in the boxes while I have struggled to reorganise my workshop/shack after the Christmas chaos.

I have disposed of a lot of junk being quite ruthless to reduce the clutter and have completely changed the layout, increasing the size of the desk and putting it on the other side of the room next to the workbench, which is much more logical.

The new look operation centre

I have finally summoned up the courage to drill a large hole in the wall to allow the antenna coax to enter properly, previously it has been done by squeezing it around the door!

Unfortunately the weather this weekend has been horrendous, yesterday I planned to erect the antenna but gave up following the intense squall which hit in the afternoon with thunder, lightning and hail! Today hasn't been much better with heavy rain for most of the day, the rain did finally eased off so I managed to erect a temporary mast with the 144/430MHz collinear on the top and the HF antenna underneath.  I know this isn't ideal as the mast is metal and may affect the HF, but seems okay. The forecast for the next few days is also a bit worrying but the mast is guyed at two heights so should be secure.

The antennas, with the stormy sky behind

I have literally just turned on the FT-857D and had a quick listen on the bands, it is very daunting for this first timer! The first thing I have worked out is how to drop the power output, current set a 5W for HF and VHF/UHF


I have a power/swr meter suitable for HF/VHF and UHF I purchased at last years Hamfest and I have it connected in the setup, and was trying to check the SWR but it wasn't registering anything when I pressed the PTT then I realised that with SSB enabled it wouldn't!! Switching to FM and I was able to check that everything was okay... Beginners mistake I know!

Now off to read the manual..

Well I've finally done it..

I have ordered my first proper 'rig' It is a Yaesu FT-857D a nice small, portable/mobile unit that will give me access to the HF and 6m/2m/70cm bands in all-modes. It has took a while since I first identified it as potential purchase but thanks to some generous Christmas presents I now have the sufficient funds and following several recommendations have decided to take the plunge and ordered it from Waters and Stanton

She is a beauty!

I have a decent 7A PSU, purchased last year which I am sure would have sufficed for 10W maximum operation however I decided to also purchase a MAAS SPS-30-II 30A(35A peak) PSU. It was a good price from Radiozing and offers plenty of power for anything I am likely to run in the foreseeable future, and from the pictures and reviews seems to be built like the proverbial brick out-house. As well as the main connectors on the back it has spring clip terminals on the front as well as a cigar lighter type connector. Dual meters showing V/A and can be used in variable mode from 9-15V or fixed at 13.8V

This is the beast!

I have also ordered one of M0CVO Antennas highly rated HW-20HP off centre fed dipoles as a starting point for HF. The antenna works in 6 bands (20, 17, 15, 12, 10 & 6m) without needing an Antenna Tuning Unit (ATU) which is one thing I haven't purchased, however Nigel(M0CVO) Chairman of SKARS (South Kestevan Amateur Radio Society) and owner of M0CVO Antennas has kindly offered to loan me an ATU in the short term.

Delivery should be later this week and I suspect I have a large learning curve ahead of me as I hit the airwaves! If you should hear me please be gentle..
