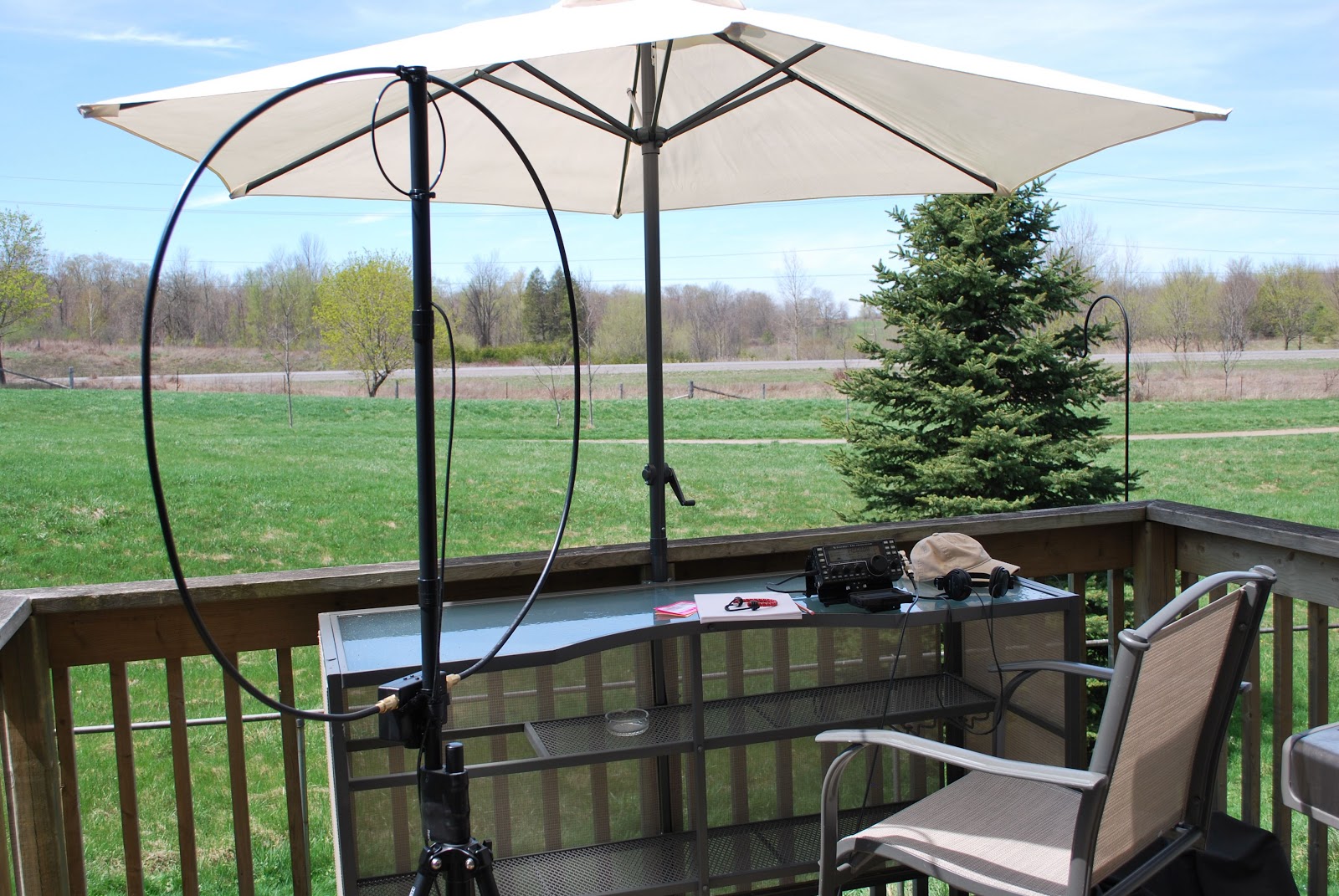

This afternoon I was planning on setting up the Alexloop into the living room and try some operating with the KX3. I was wanting to see how the loop worked in the living room. I was going to bring it on the deck but there was the threat of rain. Out of the blue when I was on 15m  in CW mode whenever I keyed a letter and then released the key I would hear a very loud "ping" in the headphones. This only happened on 17m, 10m and 15m. I tried changing the headphones, using a dummy load and reducing the power to 0 but there was always a ping noise heard in my ear? I am not sure if I inadvertently changed a menu option that is causing this. This brought the living room KX3 operations to an abrupt end and off to the internet to see what was going on with the rig. I have posted the question on the Elecraft reflector as well as here on the blog.
Problem has just been solved seems if I have the rig on dual RX and VFO A and B are very close to each other I am picking up "me" on VFO B. Which makes sense and when in dual mod the head phones are split with VFO A in one ear and VFO B in the other. This would explain why the ping was only heard in one ear!

The next step in my Alexloop tests is the bandwidth in which the loop has. Again the antenna is mounted in a bedroom/office on the second floor of the house so that may have some affect on the SWR. I do plan on getting the loop in the out doors were the ceiling, walls and surrounding furniture do not have an affect on the loop. Below is the bandwidth results.
28.004 (SWR at 2.2) to 28.060 (SWR at 2.1) around 60 Khz of bandwidth.
21.020 (SWR at 2.0) to 21.070 (SWR at 1.7) around 50Khz of bandwidth
14.000 (SWR at 2.1) to 14.035 (SWR at 1.9) around 35Khz of bandwidth
10.110 (SWR at 1.8) to 10.125 (SWR at 1.9) around 15Khz of bandwidth
  7.005 (SWR at 2.5) to 7.015 (SWR at 2.6) around 10Khz of bandwidth
 I did however use the ATU on the KX3 and the SWR was flat when used on all bands so if I want I can use the tuner and increase the bandwidth of the antenna. I do know that my attic dipole on 10Mhz the SWR is about 9.1 to 1 and the tuner will flatten that out and I have made lots of milli watt contacts all over the world. So the next step is to get this antenna out doors and give it a whirl out there and see how it does.

The new Alexloop antenna

Just over 2 weeks ago I placed an order for the Alexloop,  For some time I have been debating what antenna to use when I was out and about with my KX3. I looked at the Miracle whip, Par end fedz antennas and the Alexloop. For my needs it boiled down to the Alexloop. I did have a miracle whip in the past and it is a great antenna but just not worth the money for the performance you get. The Alexloop was ordered and arrived within a week and a half!! I was very impressed with the reviews online and the testimonials at Eham. . The antenna comes in a very well made carry case that can be taken into the field with all parts contained for your setup......well almost all parts...a tripod is one of the recommend ways to setup the antenna for field work. There are other ways it can be deployed including holding it by hand (not as young as I used to be so this method my not work for me). You can clamp it to a pic-nick table or attach it to a chair....just for starters.  The unit cost's 299.00 and I will say this is not cheap but it's very well made and portable as well. The case that holds the unit is about 1.5 by 1 foot in total. I also want to add that the case is very well made with a shoulder strap and carry handle.

A quality case

So lets get to the nuts and bolts.....how does it work....sure anyone can say anything about their antenna but the proof is in the radio waves!!

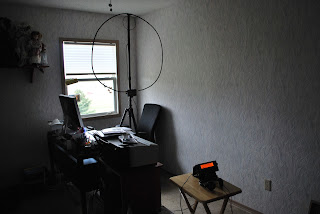

Antenna location..cat standing guard

I wanted to do a comparison between my attic dipole which is the Alpha Delta DX-EE up about 30 feet in the attic and the Alexloop set up in my XYL's office just opposite my radio room. Let me state that this is not a comparison to see which antenna preforms better as that is not a fair comparison....but I wanted to see how well the loop did compared to my attic dipole. The Alexloop was mounted on a tripod....well ty-wrapped to it as the the Alexloop would not fit over the tripod center pole section. This is something I will have to work out later. Each of these antennas have their disadvantages....the dipole is in the attic, this means a wooden roof above, rafters all over and insulation below. The Alexloop is in a second floor room, it's a small loop antenna and very close to the ceiling. So really both antenna are far from ideal when it comes to location.

Temp tripod mount

For the rig I used my Elecraft KX3 (as this is the rig I will be using when in the parks, backyard and where ever else I decide to go!) The power output was set to 5 watts and the bands I chose were 20m and 40m. The plan was to run coax from the Alexloop to a 2 position antenna switch and switch between the two antennas. The Alexloop did not seem to take a liking to the added coax. I was not able to get the SWR down below 2. Once I used the length of coax that came with the loop (about 10 feet) all was well. This just meant I was going to have to connect and disconnect the KX3 from one antenna to the other for the comparison. I was calling  CQ on 14.060 and 7.020 on the attic dipole and call CQ on 14.050 and 7.032 on the Alexloop and check out the Reverse beacon network to see who was picking up the CQ call. Not sure if the conditions were not all that great but both on 20m and 40m the attic dipole just got hits in the U.S as did the Alexloop. There was one big surprise when the Alexloop had a hit with OL5Q (along with the attic dipole) I was very impressed that a loop antenna in a bedroom was able to get a report from OL5Q!!
My overall impressions of the Alexloop are as follows:
1. Shipping was fantastic, this antenna got here from South America faster than products I have ordered from the U.S.
2. The support is great, I had a question about the loop when it arrived and it was answered within 30 minutes!!!!
3. This unit is quality quality quality from the carry case to antenna!!
4. The tuning was a cinch, turn for peak noise and then transmit and tune for lowest SWR....takes about 20 seconds!

14.060, 7.032 Alexloop

5. Assembly is done in 4 minutes for a first timer and I imagine with practice I can cut that time in half.
6. Antenna foot print is very low profile and can be used vertical or horizontal.
7. The SWR on 20m and 40m (only bands used so far) was 1.4 at 14.060 and 1.7 at 7.032.
The bottom line is I am very very impressed with this antenna and I will be taking it to the field and updating the blog on how it does.  Up to this point would I recommend this antenna.......dam right I would it's support is excellent, quality of the product is way above par and so far the results have been very impressive.


I was going through my QST this week an had notice an add for a new antenna by SteppIR. In the past I would had just passed by the add but this antenna in the picture had an eye catching look to it. It's called the CrankIR vertical and can be used from 2m to 40m or another unit that goes from 2m to 20m (an 80m unit is in the works) The antenna is great for portable ops, field day, emergency and neighborhood restricted antenna areas...and the list goes on!! For me this antenna can easily fit into a nap-sack and carried out into

Mounted on bench

 the great outdoors, placed in the truck of my Scion IQ and hauled to a park and setup at a picnic bench were I have done many a mini contest from.
So lets look at the nitty gritty of the antenna first off it's made by SteppIR who has a GREAT reputation and has been the choice of many DXpeditions. The 20m version extends to 9 feet and when folded up is only 26 inches. The 40m version is 18 feet and reduces to 30 inches. As far as I am concerned both sizes are very manageable for transporting. I am not gong to high light evey detail as there is a link on this post to the SteppIR CrankIR page with limited info but more to come!!  This antenna is due to make its purchase date in the spring of this year. I did send an email to SteppIR with some questions about the antenna and Bart was very prompt to get back to me.

My Questions were........
1. I did not notice any radials are there any? (I asked this because for portable ops sometime radials can become a pain especially if you are in a park where the public is.)
Bart's answer was.....
The antenna will be designed to work with a single, elevated, tuned radial (included)
 The crank is for extending or retracting the element around the frame of the antenna. It does not raise/lower the antenna or support tube.

The 40 to 2m retracted

  THERE HAS BEEN SOME COMMUNICATION BETWEEN MYSELF AND STEPPIR SINCE THE POST.....IT WOULD SEEM I MISUNDERSTOOD  AN EMAIL. THE CABLE YOU SEE IN THE PICTURE DOES RAISE AND LOWER THE ANTENNA ELEMENT TO THE DESIRED BAND TO WHICH YOU WANT TO OPERATE IT'S NOT A COUNTER POISE. (MY MISTAKE) BART TOLD ME THERE IS A COUNTERPOISE THAT WILL (THIS IS THE PLAN) EXTEND AND RETRACT FROM THE BASE WITH ANTENNA AS YOU GO FROM BAND TO BAND.

Not to shabby

There are hams out there that I pass by them now and then on my travels who have the luxury and availability to erect amazing towers with some amazing antennas on them. It would be great to have the land and be in the country and have "eye candy" towers and antennas. Then there are some with small city lots but do amazing things with long wires, smaller towers and beams. Last but not least there is "the other folks"...like me you either live in an apartment, townhouse and or have very strict neighborhood rules about all and any antennas!!! I am one who lives in a VERY antenna not so friendly place and I have to keep ham radio on the down low!! In my attic I have the DX-EE dipole from Alpha Delta it's good from 10m-40m but with the K3 antenna tuner I am able to add 17m and 30m. The attic is to small for the dipole to stretch from end to end, mine is in a "Z" configuration. It's about 25 to 30 feet off the ground but as said in the attic.



The SWR for such an antenna mounted undercover is below...
  7.000 - 7.060 = 2.58- 2.03 tuner brings it too 1.01
14.000 - 14.060= 2.26-2.08 tuner brings it too 1.01
21.000 - 21.060= 1.01-1.15
28.000 - 28.060= 1.15-1.12
Extra bands with tuner
18.068-18.100= 1.01-1.01 with tuner and 9.98 after tuner
10.100-10.130=1.01-1.01 with tuner and 9.13 after tuner.

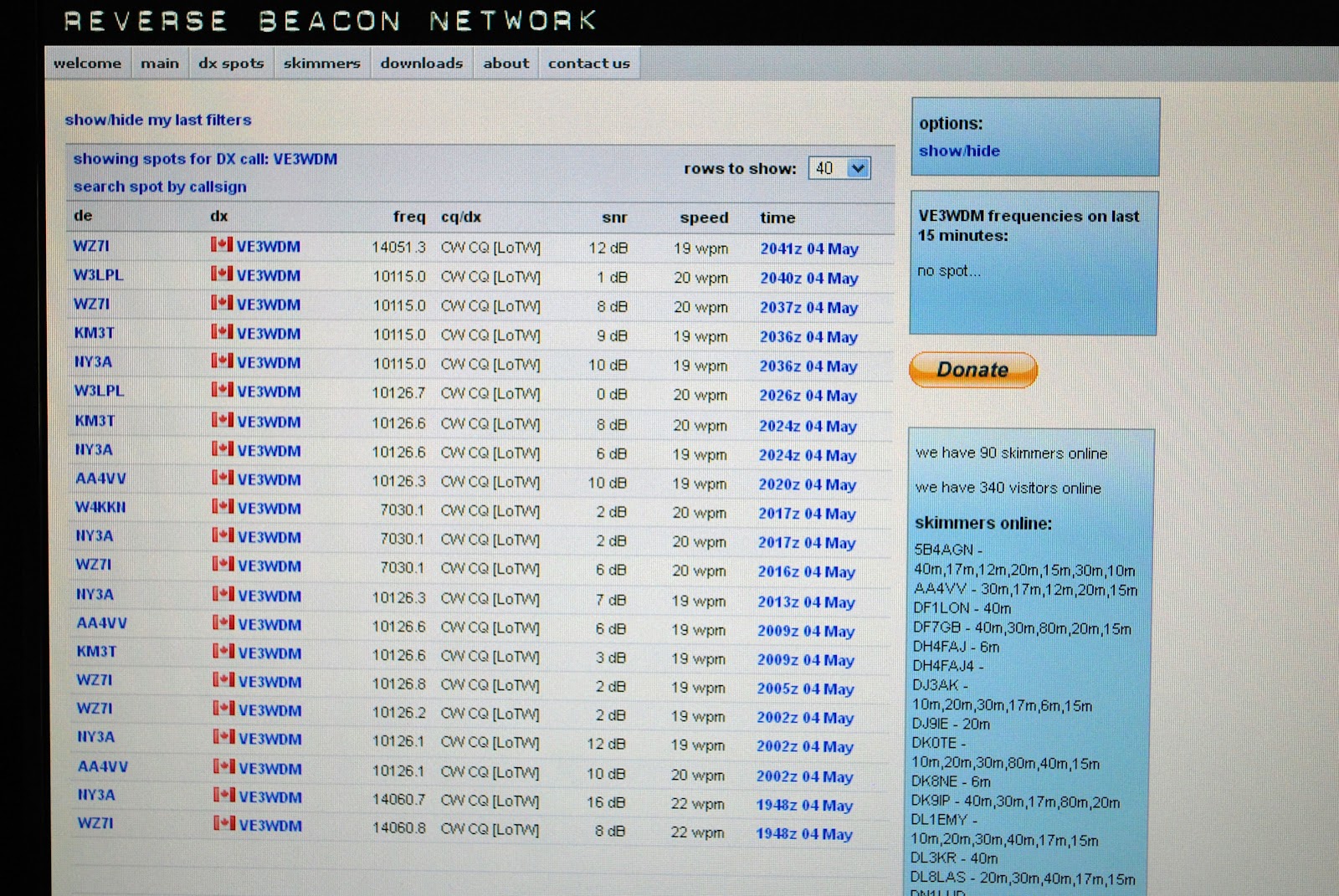

So where can  5 watts QRP power and an attic antenna go??
Italy, Switzerland, Japan, Jordan, South Africa,  all of South America, England, Greece, Azerbaijan, Cyprus, Niger, Algeria,Gambia, Alaska,Turkey, Ascension Island.........and the list could go on!!

How about 1 watt........
Germany, England, Scotland, Italy, South Africa, Czech Republic, France, Ireland, Poland, Ukraine, Sweden,

Lets move things down to 100mW's
Portugal, Finland, Germany, Netherlands, Madeira Island, Spain, Croatia, Italy, Hungary, Czech Republic and so on.

Until I get an attenuator 100mW's is a low as my K3 will take me new adventures await me when my Hendricks 41dB step attenuator is built.

1. Contact with HA8JV with 100mW's which worked out to 45,868 miles per watt contact.
2. This year I have worked 73 DXCC countries and am working towards my Diamond Jubilee award by year end.
3. Up to this point 80 contacts that are 1,000 miles per watt or more.
4. Lastly and most important......having a loads of fun!!!!!
If your situation does not allow you to install a dipole or similar medium size antenna my first QRP antennas were two mobile whip antennas made into a dipole configuration. With these antennas I was able to add to my 1000 miles per watt count......and more. So don't let some restrictions stop you from taking advantage of our hobby because less can mean more!!
UPDATE.......as Julian G4ILO has reminded me with his comment, I forgot to mention all the above was done with CW.

The new "ham mobile"

Removing some metal from the K400

Well the summer is fast approaching and with it the warm weather. over the winter I started to get things ready for some summer portable op's from my car. It involved getting the Elecraft K2 mobile ready and
setting up an antenna system that was easy to deploy and worked well. Now there was a small hitch in the plans that happened about 2 weeks ago Julie and I decided to downsize our

Need another bag

New and improved mount

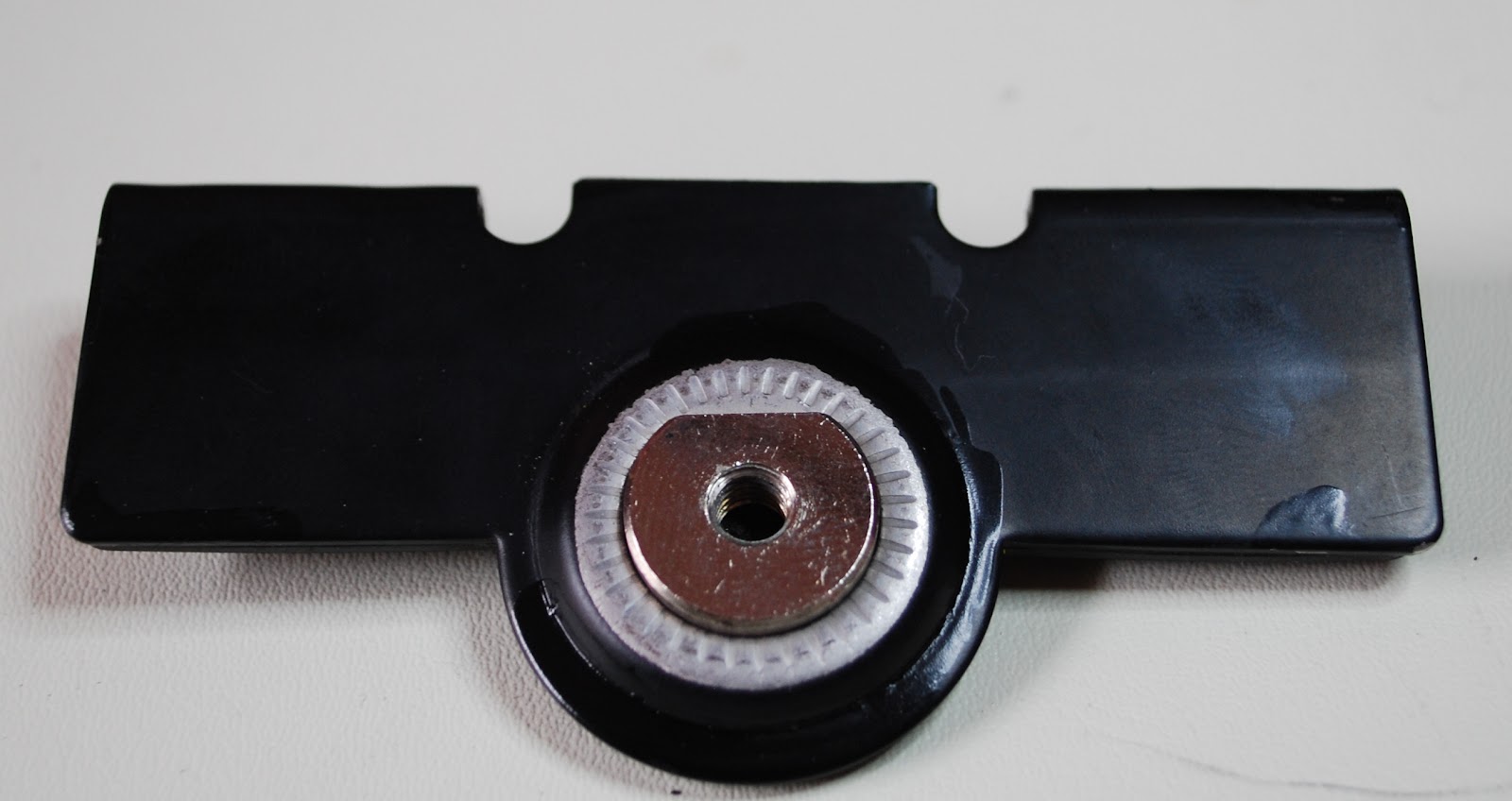

cars!! We both had large 4 door Chev Malibu's and loved them.....but so did the gas pumps! We both upgraded to the Scion IQ's half the gas and half the size. Now this meant plans had changed for my summer mobile portable operations....well not really. The Scion is a hatchback and I would just have to use my trunk mount Diamond K400 as a hatchback mount. There was just one small mod that had to be done to the mount to allow it to work on the Scion. That involved removing a small part of the flange that stopped the hatch from closing as it rubbed on the bumper. With that done the K400 fit perfectly on the Scion's hatchback. I was still going to use my faithful and reliable Palomar mono band mobile whips. With the Scion being a  much smaller car I was not sure what the reduced ground plain was going to do to the SWR?? I was prepping for the worst thinking that the SWR was going to be high no matter how I adjusted the stinger on the whip but the K2 antenna tuner would fix that. Well to my pleasure the 20m whip at 14.060 is 1.5 and the 40m whip at 7.030 is 1.4. This was with some adjusting of the length of the stinger but very pleasing

K400 installed

results. The two (for starters) mobile Palomar whips did not really fit into the old lawn chair bag as I had planned so I am going to have to come up with another plan for a carry sack for them. I am going to be stationary mobile....not sure I want to bang out CW whilst driving among the trucks and traffic on the highway!!

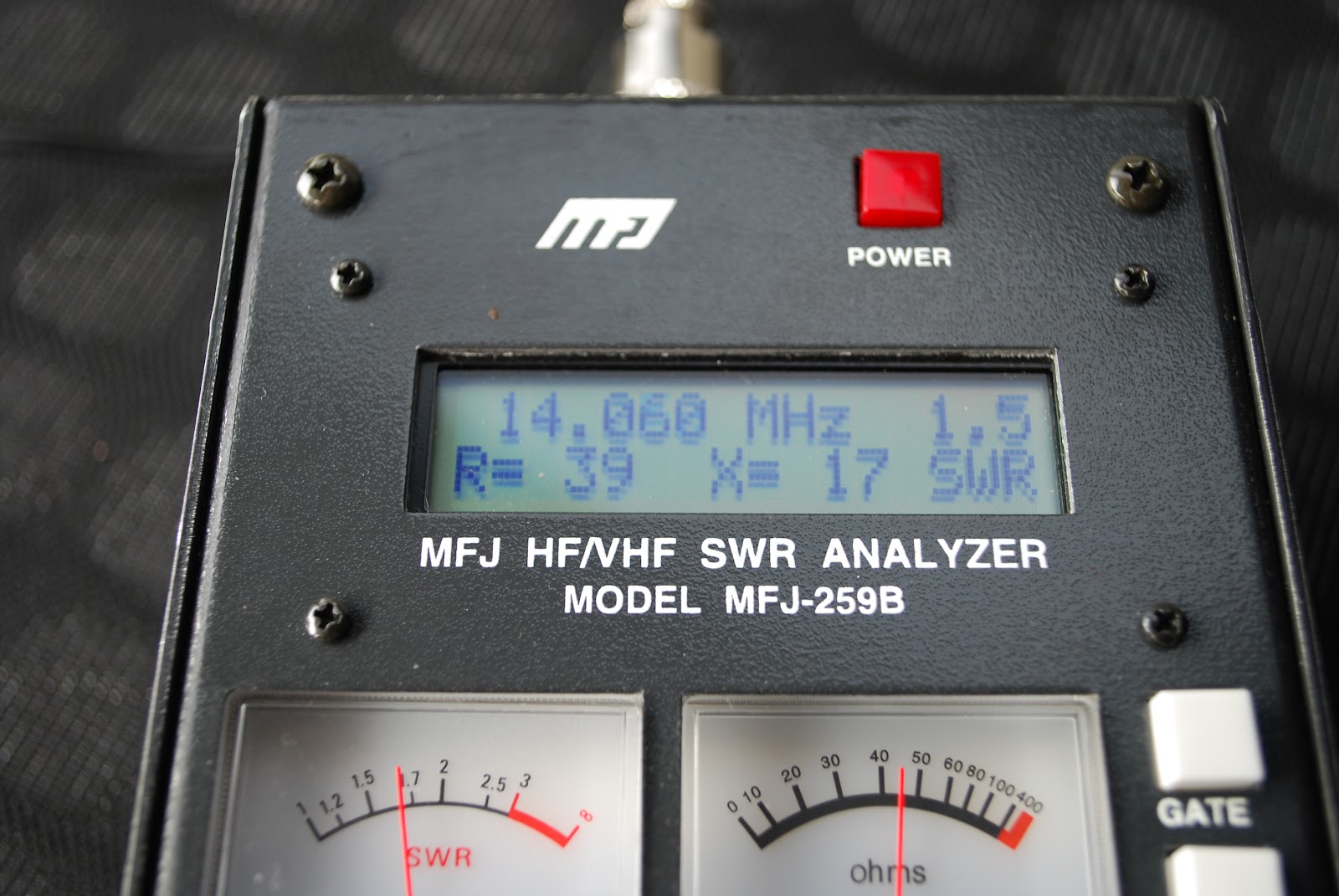

SWR on 20m's
