When I was sitting back remembering how Ham – Amateur – Radio changed my life the other day it is a pretty remarkable story. I think my story is for another time but thinking about it made me want to sit back and give back to the hobby that I love so much and has done so much for me.

The best way I thought today was to think of ways we could work together and Save Ham Radio together. I of course am in no way saying I have all the ideas or answers and I would love to hear from others but I thought I would start with my opinions.

Ham Radio isn’t dead for sure: http://www.foxnews.com/tech/2011/11/17/radio-days-are-back-ham-radio-licenses-at-all-time-high/

But are we doing all we could to promote Ham Radio to a generation that loves technology. They are glued to their tables and smartphones – they love to text and communicate. I bet – with the right motivation and experiences many of them would be interested in Ham Radio.

Over the next few weeks I am going to sit down and provide the roadmap that I have followed to help give exposure to others on radio, the safety and emergency communications aspect and the pure fun of building something new.

My first part of this series is on Sharing Ham Radio News with others:

Part One of Series –

http://nicktoday.com/nick-n1ic-how-to-save-ham-radio-5-part-series/

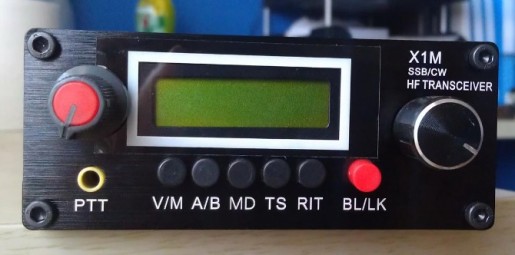

X1M QRP SSB/CW Transceiver Kit

I’ve been watching this little thing for a few weeks.  They showed up on the Kight Radio Store web page and after a few days, when I decided to pull the trigger, they had sold out.  Today they are back in stock, and one of them is on its way to me (hopefully).  Construction is described as easy assembly which I gather makes it similar to the KX3 kit.  Here are the features and specs from Kight Radio:

Transceiver: X1M [v2.01]
Frequency range: 0.1 ~ 30mhz transceiver;
Modes: ssb / cw
Power output: 5 Watts (max);
Operating voltage: minimum 9.6v (dc), max 14.5v (dc);
Operating current: 0.35a (min), 1.2a (max);
Preamplifier;
Memory 100 channels ;
RIT function;
Automatic internal CW keyer
Back-light  on/off
Keyboard can be locked;
Dimensions: 97 * 40 * 155 (mm)
Weight: 0.65
Receiving sensitivity: better than 0.45uV
Frequency stability: better than 0.5ppm
Frequency accuracy: better than 0.5ppm (boot 5 minutes)

An interesting additional feature says this equipment can be connected to HAM RADIO DELUXE software.  The user can choose any ICOM equipment, but the IC-718 is recommended.

The text also states that the version they are shipping to the USA is set up to transmit only on the Amateur bands.

I’ll let you know how it goes.

Splinter Transceiver from BreadboardRadio.com

Kit building appears to be on the rise again.  With so many people talking about it lately I attempted to research sources for kits, only to find out that there wasn’t a single-source for Ham Radio kit suppliers.

I decided to put together a good list of sources for kits that are currently available.  Many of these are for QRP operation, but a few are full-featured professional transceivers (Elecraft, DZ).  On the beginners side there are a few sources that stand out:  Hendricks has a great assortment of kits, including some SSB QRP equipment.  QRPme offers the inexpensive, easy-to-build tuna-can products, and I would like to make special mention of the Four State QRP Group NS-40 which has the coils etched right into the PC board!  What a great idea!  I’ve covered trasmitters, transceivers, and some receivers here.  Some accessories are mentioned in the source descriptions.

Revised 2/18/2013  Changes in Hendricks, YouKits, Tony Parks. Added CR KITS, and BreadBoard Radio.

Revised 2/20/2013 Added K5BCQ & K5JHF Kits

Revised 2/26/2013 Added Kit Radio Company, GQRP Club, Kenneke Comm., Walford Electronics, Kanga UK, QRP Project, Kits by EA3GCY, and OZ QRP

Enjoy, and feel free to add any corrections, or additions in the comments.  The list can always be found at RadioKitGuide.com–Neil W2NDG

-Hendricks QRP Kits http://www.qrpkits.com/

• BitX20A/17A SSB Transceiver.  The BitX20A and BitX17A are complete SSB kits with board, all parts, digital display and custom powder coated and punched case that is based on the BitX20 that was designed by Ashlan Farhan.  Output is Read the rest of this entry »

As I’ve mentioned before, KD2CHE and I belong to a local transmitter hunting group.  We get together one or two times a month.  One member will hide the box and give us a general area, which is usually a radius from a point (i.e. 2 miles from the intersection of routes 1 and 2 in Anytown, NY).  We are the only ones without doppler equipment, yet we almost always find the transmitter.  Here’s some pointers for those of you that enjoy a bunny hunt every now and then, but may not think you can participate without sophisticated direction-finding equipment, or for those of you with dopplers that want to refine your techniques.

First of all, when I know the area, I print a map from the computer, and draw a circle for the hunting area.  Then, using either our knowledge of the area, or a combination of Google Maps, and Bing Maps, I find a large building that I can drive all the way around, as close to the center as possible.  I mark the spot on the map as our starting point.  KD2CHE drives, while I navigate.  When the time comes to leave for the location, I load up the equipment:

• The mobile in the car, for communicating with the other hunters, an Icom IC-207H
• An older Kenwood all-mode 2 meter mobile, with an RF-gain control, attached to an OPEK micro mag mount antenna
• A smartphone with Google Maps, or a laptop with a broadband connection
• Bright flash-lite
• 1 HT set to the third harmonic of the hunt frequency, usually my Icom IC-T90A with a good antenna
• 1 HT set to the hunt frequency with the antenna off, usually my Baofeng UV3R MkII
• 1 HT set to the hunt frequency for KD2CHE to use out of the car

Once the transmitter is activated, KD2CHE drives slowly around the building at the starting point, stopping when the transmitter stops, and starting up again when it comes back (the one we use is usually 30 seconds on / 30 seconds off).  I mark the points in our loop where the signal was strongest and weakest, drawing a line with an arrow to get our initial vector.  Then we navigate in that direction, using Google Maps as a guide.  As the signal changes I mark the observed strength on the map.  When we reach the point where the signal strength goes back down, we determine the high point, and KD2CHE drives as close to perpendicular to the original route as she can.

During this process, the RF gain control on the Kenwood comes in handy.  The box puts out a full 5 Watts, so as you get close to it, an un-attenuated receiver becomes useless.  For the signal readings with the RF gain all the way down, I write an ‘A’ in front of the s-meter reading on the map.  As the strength goes up again, we keep an eye on the 2 HTs.  When we’re within 1 or 2 blocks, one or both of them will become active.  The third harmonic will usually not work until you are almost on top of the transmitter, which comes in handy.  This is when we start looking for a good spot.  In many cases there will be a public park, or area of some sort nearby, and the rest of the hunt is done on foot with the HTs, and the flash-lite  if necessary.

Body shielding will get you a direction to walk in.  Hold a radio that is getting a weak signal (the IC-T90A has a fixed-level attenuator I can activate) close in to your chest and slowly turn around, and make note again of the weak and strong points in the circle.  Keep in mind though that sometimes, a good hider will put the box in a location that creates reflections and ghosts.  Sometimes you just need to use logic, or in the case of our last hunt, KD2CHE found the box simply by looking, while everyone else was wandering around the woods with Yagis and other fancy equipment.

Of course it helps to know the area, and to have some insight into where people like to hide things.  One of our hiders frequently hides in places he discovers while hiking.  Another likes to hide in very unique, and sometimes questionable places.  Once or twice we’ve had to explain to the authorities what we were doing.

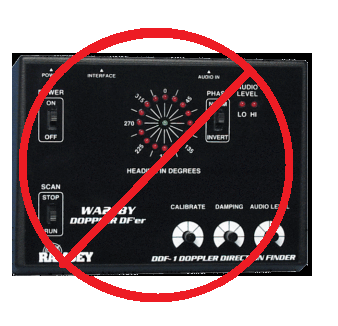

I’m convinced that a doppler might enhance our abilities, but I’m afraid of relying on it too much.  We actually have one, but it needs some work.  We’ll see.

73!  Neil W2NDG

The Splinter – from Breadboard Radio

Kit building appears to be on the rise again.  With so many people talking about it lately I attempted to research sources for kits, only to find out that there wasn’t a single-source for Ham Radio kit suppliers.

I decided to put together a good list of sources for kits that are currently available.  Many of these are for QRP operation, but a few are full-featured professional transceivers (Elecraft, DZ).  On the beginners side there are a few sources that stand out:  Hendricks has a great assortment of kits, including some SSB QRP equipment.  QRPme offers the inexpensive, easy-to-build tuna-can products, and I would like to make special mention of the Four State QRP Group NS-40 which has the coils etched right into the PC board!  What a great idea!  I’ve covered trasmitters, transceivers, and some receivers here.  Some accessories are mentioned in the source descriptions.

Revised 7/19/2012  Changes in Hendricks QRP Kits, YouKits, Genesis Radio, Tony Parks, and removed the coming soon designation on Heathkit.  I didn’t check ALL of the prices, so don’t hold me to total accuracy in that department.

Revised 10/22/2012  Changes in Hendricks, YouKits, Tony Parks, Small Wonder Labs, Wilderness Radio, and Four State QRP Group.  Removed Heathkit, Added HSC.

Revised 2/18/2013  Changes in Hendricks, YouKits, Tony Parks. Added CR KITS, and BreadBoard Radio.

Revised 2/20/2013 Added K5BCQ & K5JHF Kits

Enjoy, and feel free to add any corrections, or additions in the comments.  The list can always be found at RadioKitGuide.com–Neil W2NDG

-Hendricks QRP Kits http://www.qrpkits.com/

• BitX20A/17A SSB Transceiver.  The BitX20A and BitX17A are complete SSB kits with board, all parts, digital display and custom powder coated and punched case that is based on the BitX20 that was designed by Ashlan Farhan.  Output is about 10 Watts.  $180.00 + S&H
• PFR-3a 3-Band Portable Field Radio.  Bands : 40 meters, 30 meters and 20 meters. Tuning range: Full band coverage.  Mode: CW only.   $240.00 + S&H
• NADC30/40 CW Transceiver.  Nearly All Discrete Component CW Transceiver for either 30m or 40m.  Tuning range ~ 60 kHz.  Power output: 3.5 watts.  Full Kit: $130.00 + S&H
• Ft Tuthill 15 Meter CW Transceiver.   Two 60 KHz tuning ranges, ~ 21.000 – 21.060 and 21.075 – 21.135 MHz.  Power Output: 5 Watts.  Complete Kit (w/ case and digital dial) $130.00 + S&H
• Ft Tuthill 160 Meter CW Transceiver.   Two 30 KHz tuning ranges, ~ 1800 – 1835 and 1830 – 1865 MHz.  Power Output: 5 Watts.  Complete Kit (w/ case and digital dial) $130.00 + S&H
• DCxxB Board Only Trasceiver Kit.  These radios are the next generation of the popular DC40 transceiver that was also designed by Steve Weber.  The kit will come with 1 crystal for the band specified. 7.040 for DC40, 10.120 for DC30, 14.060 for DC20.  Board-Only kit with decals: $30.00 + S&H
• Weber Tri-Bander.  The Weber Tri-Bander can be built for any three of these bands: 80, 40, 30, 20, 17, or 15.  5 Watts out on all bands at 13.8 VDC.  Built in Iambic keyer with 5 to 40 wpm code speed.  DDS VFO for rock steady stability with 50 Hz and 200 Hz tuning rates.  Many more features!  $200 + S&H
• Scout Regen Receiver.  A simple 2 band regenerative radio receiver that is capable of receiving signals from 3.5 to 11 MHz.  A complete kit with L shaped aluminum chassis, quality doublesided Read the rest of this entry »

I was poking around on 40 meters last night with the Atlas 210X and my random wire.  I spent some time listening to the end

CU7AA

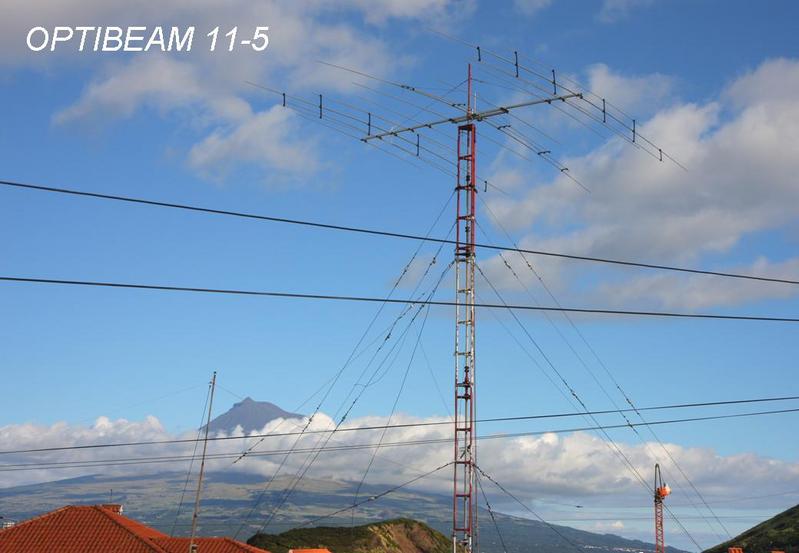

of the Brothers Net, and a bunch of Hams from the middle of the country, and caught someone with a heavy accent using a recorded CQ.  The accent was not familiar, and the callsign was CU7AA, which according to QRZ.com is in the Azores.  Looking at the picture, I’m guessing that many of you have probably talked to this station, but it’s still a thrill for me, and my bargain-basement setup.  I threw my callsign out, and snagged a QSO with him.  I love this.  Why is it so addicting?

Greetings AmateurRadio.com readers!  I have not written in quite awhile, so I feel the need to catch up a bit.  I’ve had so much going on lately that I just had to prioritize what time I have left at the end of the day.  I hope to be posting again on a more regular basis.

First of all, I want to mention that KD2CHE and I tied the knot back in October, on a cliff overlooking Lake Tahoe, on a beautiful (and warm thankfully) day in Incline Village, NV.  We were quite literally a stones throw from California.  The rest of our trip out west was great, including visits to two Silicon Valley surplus shops: Weird Stuff Warehouse, and Halted Supply Company (HSC), as well as HRO in Sunnyvale.  We even had a special tour of LucasFilms/Arts/ILG courtesy of some great friends with connections.  On the plane, on the way back, while leafing through a copy of Monitoring Times I purchased at HRO, I noticed that in an article about Ham Radio Kit Building, Kirk Kleinschmidt mentioned my Amateur Radio Kit Roundup as the source for info on kit building.  While it was a nice surprise, it also got me thinking that I needed to make the guide more accessible.  I will still post the changes here, but as a link to the guide’s new URL: RadioKitGuide.com.  For now it’s just a link to the page at my blog, but will evolve into a full wiki-style site in the near future.

My trusty HTX-10 has been busy these couple of months, logging calls to Alaska, Namibia, Croatia, New Mexico, Colorado, and California to name a few.  Mostly from the Crab Meadow Beach here on Long Island, but the Alaska contact was mobile!   A new addition to the collection is an Atlas 210X HF rig.  This was a holiday present from my better half.  After a couple of months of just listening, I finally put up a 35 foot random wire, and picked up an MFJ 941-D VersaTuner so that I could try and transmit.  It’s very close quarters where we live, so I’m limited in antenna choices, and have to worry about disturbing the neighbors (well, any more than they are already disturbed/disturbing).  I found out earlier in the week, that the setup seems to be very functional on 20 meters, and have talked to Mexico, and Florida so far.  I’m hoping for some good 10 and 15 conditions this weekend so that I can try it out up there.  I’m going to add a counterpoise to the setup and see if it helps me tune up on 40.  80 is out of the question for now, as I seem to obliterate my TV speakers and KD2CHE’s computer monitor when I even try to tune up.  My 5-cent 2 meter dipole has also been working well.  I’ll cover that in a later post.

Transmitter hunting has been pretty good, with the XYL and I usually finding the transmitter quickly, and rarely last.  What’s interesting about that is we are the only team in our hunting club that operates without a doppler.  I also will write a future post on our technique, which in our last hunt, guided us to the bunny way ahead of our technologically superior friends.  Unfortunately, as we arrived at the site, I assumed that we might have been wrong, due to the fact that there were no other cars from the hunters present.  Next time I won’t put my assumptions before my instincts.  In the end, KD2CHE was the one that actually found the box, by using her eyes, while a bunch of us wandered around the woods with our equipment.

That’s all for now.  Maybe I’ll catch one of you on HF this weekend.  73’s !

–Neil, W2NDG
