Several QSL cards have arrived after the last 630m 'crossband' event ... including one from ZF1EJ in the Cayman Islands confirming our 630m QSO in January.





The contact was made on JT-9, the 'WSPR QSO' mode, and represents DXCC country #3 for me on 630m ... only 97 more to go! ZF1EJ was running just 32 watts output when we had our 630m JT-9 contact but has since cranked his output to around 60 watts. Eden is beaconing most nights on WSPR and puts out a well-heard signal. He is very interested in two-way JT-9 work with other VE stations as well as any Europeans and down-under stations.

From what I can tell, it looks like JT-9 (similar to JT-65 but a much narrower bandwidth of 15.6Hz) is establishing itself as the go-to mode for weak signal two-way work on 630m. It has a couple of things going for it that makes it very attractive for this band ... it can dig way down into the noise (-25 db approximately) and communicate with very weak signals and, it does not require amateurs to know CW, a growing trend with newer operators and a real hindrance to two-way CW work. I suspect, and hope, that there will be much more CW activity on 630m once amateurs in the U.S.A. get the band as the amount of information that can be exchanged per transmission on JT-9 is limited ... time will tell.

In the meantime, here is a request for more two-way 'crossband' CW activity with amateurs in all parts of North America. I have recently totally revised the 'CQ Crossband' page on my website, 'The VE7SL Radio Notebook'. Please note that my web address for well over a decade, is no longer valid and everything has been moved to this new location. If you have the old one bookmarked or are linking to it from your own site, please be aware that previous links will now be dead.

The crossband concept allows amateurs not yet on 630m to still participate in this exciting part of the spectrum ... and to check out their ability to hear anything on MF. If we were to make a schedule for a crossband contact, I would be transmitting on 630m at full ERP while you would be answering on one of the HF bands ... usually 160, 80 or 40m.

I am very much interested in setting up crossband schedules for 630m at any time and can very likely enlist several other VE7s to be there as well so that you can work more than one station. I have full details on my updated 'CQ Crossband' web page but please do not hesitate to give crossband a try!


Roger, VE7VV in Victoria, B.C., recently became the 8th VE7 to muster RF on 630m, with power limited to 1 watt at present. Our contact was on CW while he worked stations in Vancouver on JT-9. Hopefully he will continue to build his station and become more active on the band.

Crossband continues to be a subject of much interest both here and with many U.S. stations that are waiting for the band. Recent cards from Colorado and California, shown below, are the latest to arrive.




K6YK gave me an RST of '519' but explained the reason for this was because he was receiving on his 3 el HF tri-bander which provided the best signal-to-noise value! This is often the case on 630m so try what you have. Many times a 'non-resonant' antenna will pick up less noise and yield the best signal readability.

If you would like to try a crossband QSO, please contact me at VE7SL (at) shaw.ca ... I'll keep the rig warmed up!

CLE 216 NA Targets!

This coming weekend will see another CLE challenge. This time the hunting grounds will be:  320.0 - 334.9 kHz.






A 'CLE' is a 'Co-ordinated Listening Event', as NDB DXers around the world focus their listening time on one small slice of the NDB spectrum.

A nice challenge in this one is to hear the White Rock NDB, 'WC', on 332 kHz. The 'WC' NDB is located just a few hundred feet from the Canada - U.S. border, about 25 miles south east of the Vancouver International airport and about 20 miles west of the Abbotsford airport.

The beacon is located on a quiet residential street, nestled between well kept homes and towering fir trees.

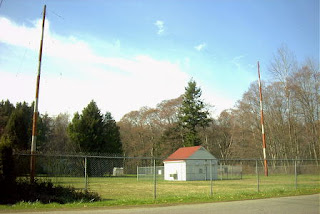

'WC - 332' White Rock, BC

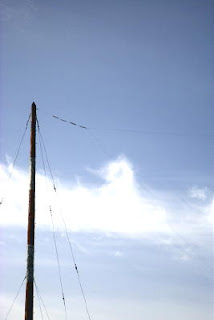

Antenna at 'WC - 332'

The antenna is an inverted 'L' end-fed Marconi about 65' in height with a flat top of about 200'. The downlead is barely visible in the above photo as it angles its way back to the transmitter shed.

Heard regularly in California, 25 watt 'WC' is not as widely reported as is 'XX -344', especially from points east. As the system is similar to what a typical amateur LF installation might be, I would be very interested in any reception reports of 'WC' by DXers to the east. 'WC's upper sideband modulation frequency is ~ 423Hz so look for it on 332.423 kHz with your receiver in the CW mode.



From CLE organizer Brian Keyte, G3SIA, comes the usual 'heads-up':


(Reminder: You could use any one remote receiver for your loggings,
stating its location and owner - with their permission if required.
A remote listener may NOT also use another receiver, whether local or
remote, to obtain further loggings for the same CLE).


These listening events serve several purposes. They:

• determine, worldwide, which beacons are actually in service and on-the-air so the online database can be kept up-to-date

• determine, worldwide, which beacons are out-of-service or have gone silent since the last CLE covering this range

• will indicate the state of propagation conditions at the various participant locations

• will give you an indication of how well your LF/MF receiving system is working

• give participants a fun yet challenging activity to keep their listening skills honed

Final details can be found at the NDB List website, and worldwide results, for every participant, will be posted there a few days after the event. If you are a member of the ndblist Group, results will also be e-mailed and posted there.

The very active Yahoo ndblist Group is a great place to learn more about the 'Art of NDB DXing' or to meet other listeners in your region. There is a lot of good information available there and new members are always very welcome. As well, you can follow the results of other CLE participants from night to night as propagation is always an active topic of discussion.

If you are contemplating getting started on 630m, listening for NDBs  is an excellent way to test out your receive capabilities as there are several NDBs located near this part of the spectrum.

You need not be an ndblist member to participate in the CLEs and all reports, no matter how small, are of much value to the organizers.

'First-time' logs are always VERY welcome!

Reports may be sent to the ndblist or e-mailed to either myself or CLE co-ordinator, Brian Keyte (G3SIA), whose address appears above.

Please ... give the CLE a try ... then let us know what NDB's can be heard from your location! Your report can then be added to the worldwide database to help keep it up-to-date.

Good hunting!

CLE 216 NA Targets!

This coming weekend will see another CLE challenge. This time the hunting grounds will be:  320.0 - 334.9 kHz.






A 'CLE' is a 'Co-ordinated Listening Event', as NDB DXers around the world focus their listening time on one small slice of the NDB spectrum.

A nice challenge in this one is to hear the White Rock NDB, 'WC', on 332 kHz. The 'WC' NDB is located just a few hundred feet from the Canada - U.S. border, about 25 miles south east of the Vancouver International airport and about 20 miles west of the Abbotsford airport.

The beacon is located on a quiet residential street, nestled between well kept homes and towering fir trees.

'WC - 332' White Rock, BC

Antenna at 'WC - 332'

The antenna is an inverted 'L' end-fed Marconi about 65' in height with a flat top of about 200'. The downlead is barely visible in the above photo as it angles its way back to the transmitter shed.

Heard regularly in California, 25 watt 'WC' is not as widely reported as is 'XX -344', especially from points east. As the system is similar to what a typical amateur LF installation might be, I would be very interested in any reception reports of 'WC' by DXers to the east. 'WC's upper sideband modulation frequency is ~ 423Hz so look for it on 332.423 kHz with your receiver in the CW mode.



From CLE organizer Brian Keyte, G3SIA, comes the usual 'heads-up':


(Reminder: You could use any one remote receiver for your loggings,
stating its location and owner - with their permission if required.
A remote listener may NOT also use another receiver, whether local or
remote, to obtain further loggings for the same CLE).


These listening events serve several purposes. They:

• determine, worldwide, which beacons are actually in service and on-the-air so the online database can be kept up-to-date

• determine, worldwide, which beacons are out-of-service or have gone silent since the last CLE covering this range

• will indicate the state of propagation conditions at the various participant locations

• will give you an indication of how well your LF/MF receiving system is working

• give participants a fun yet challenging activity to keep their listening skills honed

Final details can be found at the NDB List website, and worldwide results, for every participant, will be posted there a few days after the event. If you are a member of the ndblist Group, results will also be e-mailed and posted there.

The very active Yahoo ndblist Group is a great place to learn more about the 'Art of NDB DXing' or to meet other listeners in your region. There is a lot of good information available there and new members are always very welcome. As well, you can follow the results of other CLE participants from night to night as propagation is always an active topic of discussion.

If you are contemplating getting started on 630m, listening for NDBs  is an excellent way to test out your receive capabilities as there are several NDBs located near this part of the spectrum.

You need not be an ndblist member to participate in the CLEs and all reports, no matter how small, are of much value to the organizers.

'First-time' logs are always VERY welcome!

Reports may be sent to the ndblist or e-mailed to either myself or CLE co-ordinator, Brian Keyte (G3SIA), whose address appears above.

Please ... give the CLE a try ... then let us know what NDB's can be heard from your location! Your report can then be added to the worldwide database to help keep it up-to-date.

Good hunting!

CLE 216 NA Targets!

This coming weekend will see another CLE challenge. This time the hunting grounds will be:  320.0 - 334.9 kHz.






A 'CLE' is a 'Co-ordinated Listening Event', as NDB DXers around the world focus their listening time on one small slice of the NDB spectrum.

A nice challenge in this one is to hear the White Rock NDB, 'WC', on 332 kHz. The 'WC' NDB is located just a few hundred feet from the Canada - U.S. border, about 25 miles south east of the Vancouver International airport and about 20 miles west of the Abbotsford airport.

The beacon is located on a quiet residential street, nestled between well kept homes and towering fir trees.

'WC - 332' White Rock, BC

Antenna at 'WC - 332'

The antenna is an inverted 'L' end-fed Marconi about 65' in height with a flat top of about 200'. The downlead is barely visible in the above photo as it angles its way back to the transmitter shed.

Heard regularly in California, 25 watt 'WC' is not as widely reported as is 'XX -344', especially from points east. As the system is similar to what a typical amateur LF installation might be, I would be very interested in any reception reports of 'WC' by DXers to the east. 'WC's upper sideband modulation frequency is ~ 423Hz so look for it on 332.423 kHz with your receiver in the CW mode.



From CLE organizer Brian Keyte, G3SIA, comes the usual 'heads-up':


(Reminder: You could use any one remote receiver for your loggings,
stating its location and owner - with their permission if required.
A remote listener may NOT also use another receiver, whether local or
remote, to obtain further loggings for the same CLE).


These listening events serve several purposes. They:

• determine, worldwide, which beacons are actually in service and on-the-air so the online database can be kept up-to-date

• determine, worldwide, which beacons are out-of-service or have gone silent since the last CLE covering this range

• will indicate the state of propagation conditions at the various participant locations

• will give you an indication of how well your LF/MF receiving system is working

• give participants a fun yet challenging activity to keep their listening skills honed

Final details can be found at the NDB List website, and worldwide results, for every participant, will be posted there a few days after the event. If you are a member of the ndblist Group, results will also be e-mailed and posted there.

The very active Yahoo ndblist Group is a great place to learn more about the 'Art of NDB DXing' or to meet other listeners in your region. There is a lot of good information available there and new members are always very welcome. As well, you can follow the results of other CLE participants from night to night as propagation is always an active topic of discussion.

If you are contemplating getting started on 630m, listening for NDBs  is an excellent way to test out your receive capabilities as there are several NDBs located near this part of the spectrum.

You need not be an ndblist member to participate in the CLEs and all reports, no matter how small, are of much value to the organizers.

'First-time' logs are always VERY welcome!

Reports may be sent to the ndblist or e-mailed to either myself or CLE co-ordinator, Brian Keyte (G3SIA), whose address appears above.

Please ... give the CLE a try ... then let us know what NDB's can be heard from your location! Your report can then be added to the worldwide database to help keep it up-to-date.

Good hunting!

Last weekend's 630m Midwinter Activity Event appeared to bring out a lot of new listeners to the band as well as to the crossband activity.


John, KB5NJD, reports in his daily 630m summary, that numbers were higher than previous events, indicating much new interest in what might eventually become the new 'Topband'. John has a very detailed timeline of events for the night including extensive coverage of experimental station reports.

Unfortunately, as is often the case, geomagnetic conditions were still suffering the effects of a week long coronal hole stream bombardment, particularly geo-effective in VE7 and the PNW, which always seems to tickle the southern elongated tail of the auroral oval further north. Stations to the south reported better, but quickly shifting propagation paths, while VE3OT in Ontario seemed to have no difficulty in working his numerous QSX callers.

Murphy's Law in action. The yellow disturbance coincides exactly with the event!

The path from VE7 was predominantly north-south, with the east-west path almost non-existent ... often the case when K indices are higher than 0 or 1. Several of the crossband stations reported heavy QRM on their HF QSX frequencies, which was expected. There were a number of CW events, including the NA CW and the FOC parties, as well as an international RTTY contest in full swing. I found my QSX of 3526 kHz to be busy but manageable as stations did not seem to stay too long before moving to another frequency. My 40m QSX of 7115 kHz was clear all night but most callers chose to use 80m.

Eventually, if and when the U.S. gets the 630m band, crossband work will no longer be needed. With all of the loud VE7 and Washington state activity on 630m, it will be an interesting challenge to work within the band itself ... but what great fun it will eventually be to hear 630m sounding like 160m during a winter CW contest!

Here is a rundown on the Canadian crossband action:

Joe, VO1NA out on the rock, used 80m as his talkback frequency while running 50W to a large inverted-L.

• PE5T
• VO1DI
• PAØO
• K1PX

Additional 'heard reports' were received from LA6LU, VE2PEP, DL4HG and PAØRDT.

Moving further west, Mitch, VE3OT, had a busy night with his 250 watts and 340' rectangular loop pointing east-west:

• VA3DN---ON
• W3TS---PA
• K1PX---CT
• W8PI---MI
• WB3AVN---MD
• K3PA---KS
• K3CCR---MD
• AC9S---IN
• WA8ZZ---MI
• W3WH---PA
• WA9ETW---WI
• AB4KJ---IL
• NS8S---MI
• N9SE---IN
• WA3TTS---PA
• W2JEK---NJ
• VE3GRO---ON
• WØBV---CO
• K2PI---VA
• K1HTV---VA
• N2MS---NJ
• KB5NJD---TX
• NO3M---PA
• NA5DX---MS
• K9RT---IN
• WØJW---IA

Mitch adds:

"Good conditions here - and similar frequency choice as last year….all but 2 QSOs on 3.5Mhz. Lost 3 possible QSOs - just too weak - at the noise level, but they obviously were copying me on 477….interesting.
Thinking about band condx - I think I should have stayed another hour or so and see i the band finally opened further West than Colorado.
It was interesting to see the East slowly fade away and the Mid-West and Western stations started calling. A good exercise - and lots of compliments and thanks from the U.S. operators."

Mitch is working on a special QSL for those stations that worked him.

Out on the west coast, things were busy as well but other than a couple of brief periods, there seemed to be a Faraday shield not too far east of the Rockies ... mostly a north-south affair.

John, VE7BDQ, reports:

• W7FI---WA
• K7WA---WA
• K6YK---CA
• VE6XH---AB
• VA7JX---BC
• VE7BGJ---BC
• K7CW---WA
• AH6EX/W7---WA
• CF7MM---BC
• K6IR---WA
• K7SS---WA
• W9PL---WA
• CF7MM---BC
• CG7CNF---BC
• VE7SL---BC

From Toby, VE7CNF:

• AH6EZ/W7---WA
• K7CW---WA
• CF7MM---BC
• K7SS---WA
• W9PL---WA
• N7BYD---MT
• VE7BDQ---BC
• W7FI---WA
• W6TOD---CA
• VE7KW---BC
• VE6XH---AB
• VE7BGJ---BC
• VA7JX---BC
• K6YK---CA
• KB5NJD---TX

From Mark, VA7MM:

• W7FI---WA
• K7CW---WA
• W6RKC---CA
• W6TOD---CA
• AH6EZ/W7---WA
• VE6XH---AB
• VE7KW---BC
• K6YK---CA
• VE7BGJ---BC
• VA7JX---BC
• K7SS---WA
• CG7CNF---BC
• VE7BDQ---BC

630m top-loaded 'T' (and multiband HF dipole) at VA7MM...100' vertical x 50' tophat.

Besides being just a lot of fun, these events always provide some interesting 'takeaways'.

It's clear that there is a lot of interest in this band and it continues to grow ... reporting levels have never been higher. One crossbander in Washington state indicated that he has a station already to go, once the U.S. gets the band.

Activities such as this continue to demonstrate that stations running something less than the maximum allowable 5 watts eirp can produce impressive signal levels, allowing solid aural contacts over considerable distances via skywave ... even under the marginal conditions just experienced.

Considering the amount of RF being generated nightly for several years by high erp experimental stations as well as during numerous frenzied 630m activity nights, there should be little doubt that interference to hydro switching systems is a non-issue. Sadly, this argument by power authority lobbyists still appears to be the main obstacle for the FCC's foot-dragging of 630m implementation in the U.S.A.

It was great to see participation and interest from VE6 land! Hopefully more Canadian amateurs will take up the challenges offered by 630m ... both in operating and in building a station. You need not have anything more than a suburban backyard to enjoy transcontinental work and like so many activities ... the more, the merrier!

One week from tonight, on Saturday Feb 4th, the 2nd Midwinter 630m Activity Event will take place.




The highlight of this event will be the opportunity for amateurs, throughout North America, to attempt crossband CW contacts with Canadian amateurs operating on 630m.

Canadian stations will call CQ on announced frequencies within the 630m band and listen on individual HF (QSX) frequencies for callers.

Due to the RTTY and Sprint activities on the same night, some of the QSX frequencies have been shifted from those that might normally have been used in the past.

There appears to be a lot of growing interest in 630m among American operators. It is hoped that the USA will soon have access to 630m as a ham band.

There will also be a large turnout of U.S. experimental activity, either in beacon mode or in two-way QSO mode with other experimental service stations.

In past events,  Transcontinental crossband contacts have been completed. It is hoped that operating events such as this can serve to demonstrate the interesting propagation possibilities of this unique part of the spectrum and generate more new interest in the 630m band.

To read more about this event, please see the ARRL news announcement here.

This time out, there will be six Canadian stations, from Newfoundland to the west coast, hoping to work as many of you as possible!


Station: CF7MM (Mark) CN89 Coquitlam, British Columbia
Time: February 5, 0200-0700 UTC
Transmit frequency: 475.0 kHz
Receive (QSX) frequency: 1,801 kHz, 3,501 kHz, 3,528, and 7,028 kHz

Station: VE7BDQ (John) CN89 Delta, British Columbia
Time: February 5, 0300-0700 UTC
Transmit frequency: 474.0 kHz
Receive (QSX) frequency: 1,833 kHz, 3,533 kHz

Station: CG7CNF (Toby) CN89 Burnaby, British Columbia
Time: February 5, 0200-0800 UTC
Transmit frequency: 476.5 kHz
Receive (QSX) frequency: 1,827 kHz, 3,527 kHz, 7,027 kHz

Station: VE7SL (Steve) CN88 Mayne Island, British Columbia
Time: February 5, 0200-0700 UTC
Transmit frequency: 473.0 kHz
Receive (QSX) frequency: 3,526 kHz, 7,115 kHz

Station: VO1NA (Joe) GN37 Torbay, Newfoundland
Time: February 4, 2130 UTC, until February 5, 0130 UTC
After 0130 UTC, 5WPM CW beacon until 1000 UTC
Transmit frequency: 477.7 kHz
Receive (QSX) frequency: 3,525.5 kHz

Station: VE3OT (Mitch) EN92 London, Ontario
Time: February 5, 0000-0500 UTC
Transmit frequency: 477.0 kHz
Receive (QSX) frequency: 3,610 kHz, 7,105 kHz

See you next Saturday we hope!

VA7MM 630m Top Hat Under Construction

Early last night ZF1EJ (Eden) and I were able to easily complete a two way JT9 QSO on 630m ... 475.300 kHz to be more exact.





This was Eden's first 630m JT9 QSO as well as the first ever 630m QSO between Canada and the Cayman Islands. The contact was completed shortly between 8:15 and 8:30 PM local time. The contact attempt was initiated via the ON4KST 2200m / 630m chat page after I had decoded Eden's signal shortly before 7 PM local time ... the first time I have seen his signal so early in the evening.

Eden was using a VK4YB Monitor Sensors Transverter and a newly deployed transmitting antenna described below in the KB5NJD Daily 630m Report:

"This is how the antenna is setup:- It is a tophat vertical, the tophat is 65’ 6” long and about 80’ above ground, the vertical is 74’ 6”, There are 4 radials 10’ above ground, each 128’ 6” long. The antenna is made of #10, stranded insulated wire. The tophat is strung between two towers and is side on about 45 deg. The tuner was built by Ron and Ward a few month ago and shipped down to me. Just found the time to set it up recently. The SWR is 1.1-1 and I am using a Monitor Sensors Transverter built by Roger, VK4YB. Output to antenna 22 watts."

The only change to the above report was Eden's e-mail follow-up indicating that his power output during our QSO was 32 watts ... conditions must have been even better than I thought.

JT-9 Screen At VE7SL

There is no question that his antenna works very well as his signal was decoded on every transmission following my first reception of his JT9 signal. Conditions appeared to be good enough that we could have continued the contact for some time as there was little fading during the time of our QSO. Later in the evening, signals at his end reached well into CW levels for considerable time while just one WSPR transmission from Eden was received at CW levels.

With an even newer JT-9A mode now promising a 2db improvement, making contacts should be even easier. Once the USA gets access to 630m, it is clear that Eden will be a popular target for most North American stations!
